Product
IPF
VD589821
Request a Quote

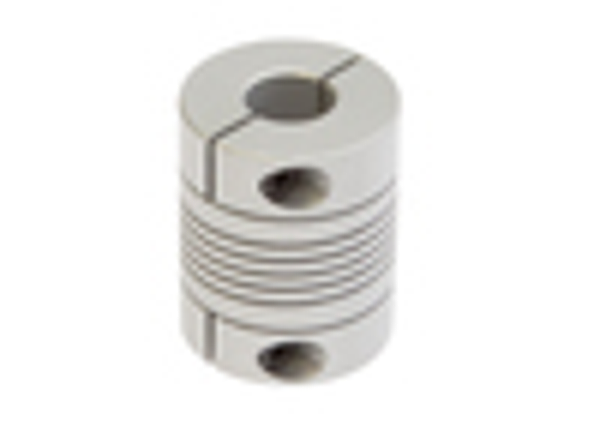

Image copyright: IPF
IPF VD589821
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | Incremental encoder |
| Torque: | 0.01Nm |
| Ambient temperature: | -20 - 80°C |
| Type of encoder shaft: | Full shaft |
| Shaft diameter: | 10mm |
| Sensor length: | 68.5mm |
| Radial load capacity of the shaft: | 40N |
| Shock resistance, pulse time: | 6ms |
| Vibration resistance, frequency: | 2000Hz |
| Max. rotation speed: | 6000opm |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP65 |
| Encoder size: | 58 |
| Sensor diameter: | 58mm |
| Axial load capacity of shaft: | 40N |
| Shock resistance, acceleration: | 100g |
| Vibration resistance, acceleration: | 10g |
| Moment of inertia: | 30gcm² |
| Voltage type: | DC |
| Number of pins: | 8 |
| Type of electrical connection: | Connector M12 |
| Supply voltage: | 5 - 30V |
| Short-circuit protection: | yes |
| Positioning of cable feed: | Radial |
| Reverse polarity protection: | no |
| With USB interface: | yes |
| Programmable: | yes |
| Encoder signal outputs: | A+B+0 |
| No-load current: | 45mA |
| Rated switching current: | 20mA |
| Max. output frequency: | 900000Hz |
| Physical measurement principle: | Optic |
| Shaft length: | 10 |
| eClass 7.0: | 27270590 |
| eClass 7.1: | 27270590 |
| eClass 8.0: | 27270590 |
| eClass 9.0: | 27270590 |
| eClass 9.1: | 27270590 |
| ETIM-6.0: | EC001486 |
| ETIM-7.0: | EC001486 |
| IPF Product Group: | 520 |
| shipping weight: | 0.41kg |
| packaging dimensions: | 130mm x 110mm x 140mm |
| customs tariff number: | 90318020 |
| Verpackungsmaße: | 130mm x 110mm x 140mm |
| Zolltarifnummer: | 90318020 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
