Product
IPF
SY991185
Request a Quote
Image copyright: IPF

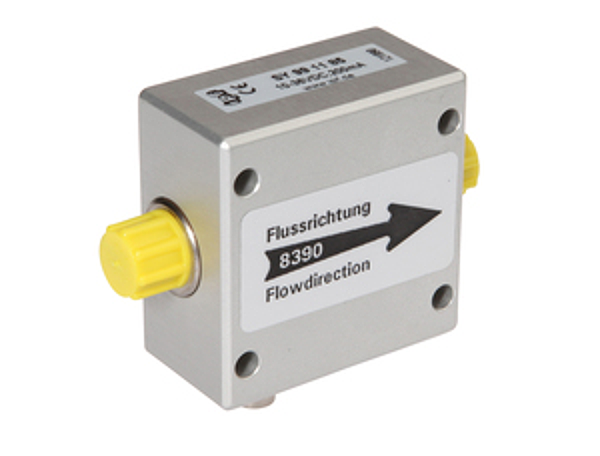

IPF SY991185
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 45mm |
| Depth: | 23mm |
| Pressure resistance: | 70bar |
| Housing material: | Aluminum |
| Degree of protection (IP) of evaluation electronics: | IP67 |
| Height: | 23mm |
| Design: | Cuboid |
| Length: | 63mm |
| Type of process connection: | Hose OD 6mm |
| Degree of protection (IP) of measuring head: | IP67 |
| Voltage type: | DC |
| Type of electrical connection: | Plug-in connection M8 |
| Type of switching function: | Normally open contact (NO) |
| No-load current: | 15mA |
| Short-circuit protection: | yes |
| Switching frequency: | 2Hz |
| Type of switching output: | PNP |
| Operating voltage: | 10 - 36V |
| Rated switching current: | 200mA |
| eClass 7.0: | 27371815 |
| eClass 7.1: | 27371815 |
| eClass 8.0: | 27371815 |
| eClass 9.0: | 27371815 |
| eClass 9.1: | 27371815 |
| ETIM-6.0: | EC002580 |
| ETIM-7.0: | EC002580 |
| IPF Product Group: | 700 |
| shipping weight: | 0.13kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 90261021 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
