Product
IPF
SM430021
Request a Quote

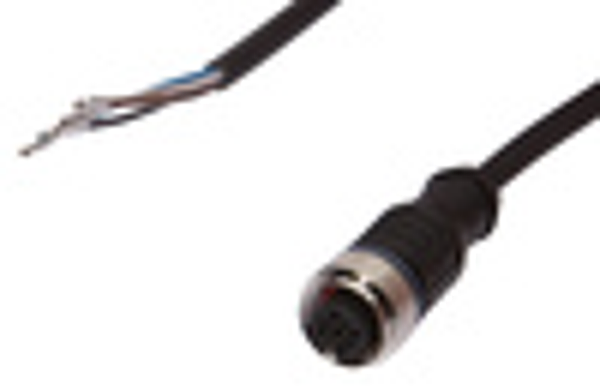

Image copyright: IPF
IPF SM430021
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 72mm |
| Design: | Cuboid |
| Length: | 100mm |
| Type of process connection: | Cutting ring fitting for OD 15mm |
| Degree of protection (IP) of evaluation electronics: | IP65 |
| Sensing element material: | Stainless steel 1.4571 |
| Measuring range of flow velocity with water: | 1 - 80m/s |
| Height: | 43mm |
| Pressure resistance: | 10bar |
| Housing material: | PBT / PVDF |
| Medium temperature: | 5 - 60°C |
| Degree of protection (IP) of measuring head: | IP65 |
| Measuring range of flow velocity with oil: | 1 - 80m/s |
| Voltage type: | DC |
| Number of pins: | 4 |
| Type of electrical connection: | Plug-in connection M12 |
| Type of switching function: | Programmable/configurable |
| Setting procedure: | Parameterization |
| Rated switching current: | 200mA |
| Adjustable responding value for flow for liquids: | 0.2 - 80m/s |
| Readiness delay: | 10ms |
| Flow measurement: | yes |
| Turn-off delay: | 50s |
| Type of analog output: | 4 mA ... 20 mA |
| Type of switching output: | PNP |
| Operating voltage: | 24 - 24V |
| No-load current: | 100mA |
| Number of switching points: | 1 |
| Response time: | 8000ms |
| Measuring principle of flow: | Magnetic-inductive |
| eClass 7.0: | 27371815 |
| eClass 7.1: | 27371815 |
| eClass 8.0: | 27371815 |
| eClass 9.0: | 27371815 |
| eClass 9.1: | 27371815 |
| ETIM-6.0: | EC002580 |
| ETIM-7.0: | EC002580 |
| IPF Product Group: | 300 |
| shipping weight: | 0.79kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 90261021 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
