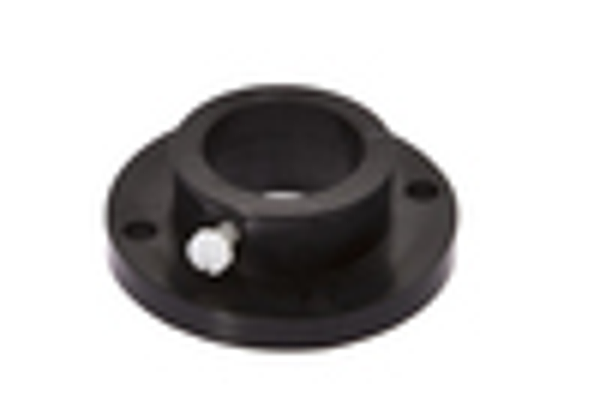

Image copyright: IPF
IPF SL454900
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 50mm |
| Depth: | 159mm |
| Cable length: | 2m |
| Pressure resistance: | 3bar |
| Housing material: | PA |
| Type of process connection: | G1 inch |
| Degree of protection (IP) of measuring head: | IP67 |
| Measuring range of flow velocity with air: | 0.5 - 30m/s |
| Height: | 78mm |
| Thread length: | 107mm |
| Design: | Cuboid |
| Length: | 160mm |
| Material of cable sheath: | PVC |
| Degree of protection (IP) of evaluation electronics: | IP67 |
| Sensing element material: | Stainless steel 1.4305 |
| Voltage type: | AC |
| Type of switching output: | Relay contact |
| Operating voltage: | 230 - 230V |
| Rated switching current: | 4000mA |
| Adjustable responding value for flow for gases: | 0.5 - 30m/s |
| Readiness delay: | 90ms |
| Type of electrical connection: | Cable |
| Type of switching function: | Change-over contact (NO/NC) |
| No-load current: | 80mA |
| Pressure resistance of measuring head: | 3bar |
| Response time: | 30000ms |
| Measuring principle of flow: | Calorimetric |
| eClass 7.0: | 27371815 |
| eClass 7.1: | 27371815 |
| eClass 8.0: | 27371815 |
| eClass 9.0: | 27371815 |
| eClass 9.1: | 27371815 |
| ETIM-6.0: | EC002580 |
| ETIM-7.0: | EC002580 |
| IPF Product Group: | 300 |
| shipping weight: | 0.74kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 90268020 |
