Product
IPF
PT643023
Request a Quote

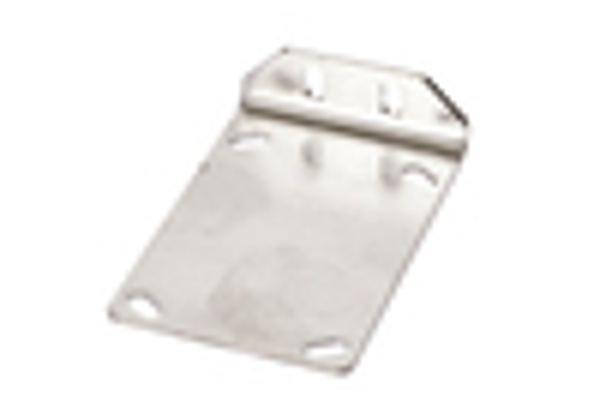

Image copyright: IPF
IPF PT643023
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Housing coating: | Anodized |
| Material of optical surface: | Glass |
| Sensor width: | 20.6mm |
| Sensor length: | 78mm |
| Housing material: | Aluminum |
| Ambient temperature: | -10 - 50°C |
| Degree of protection (IP): | IP67 / IP54 |
| Sensor height: | 68mm |
| Storage temperature: | -20 - 85°C |
| Voltage type: | DC |
| Number of pins: | 8 |
| Switching frequency: | 3300Hz |
| Type of analog output: | 0 V ... 10 V / 4 mA ... 20 mA |
| Type of switching output: | PNP/NPN |
| Operating voltage: | 21.6 - 26.4 |
| Standard for interfaces: | RS-232 |
| Measuring method for optical distance measurement: | Triangulation |
| Supply voltage: | 24 - 24V |
| Short-circuit protection: | yes |
| Reverse polarity protection: | yes |
| Laser power: | 1mW |
| Number of pins of the communication interface: | 4 |
| Type of communication interface: | Connector M5 |
| Reichweite: | 200mm |
| Number of switching outputs: | 2 |
| Scanning principle: | Reflection sensor |
| Type of electrical connection: | Rotatable M12-connector |
| Type of switching function: | Programmable/configurable |
| Setting procedure: | Other |
| No-load current: | 200mA |
| Relative repeat accuracy: | 0.04% |
| Rated switching current: | 100mA |
| Measuring range length: | 50 - 200mm |
| Type of alarm output: | PNP/NPN |
| Switching function of the alarm output: | Programmable/configurable |
| Type of plug-in contact, communication interface: | Female (socket) |
| Absolute repeat accuracy: | 10µm |
| Relative linearity deviation: | 0.25% |
| Laser protection class: | Class 1 |
| Wavelength of the sensor: | 670nm |
| Light beam form: | Line |
| Light source: | Laser diode, red light |
| Resolution: | 40µm |
| Laser focus distance: | 125mm |
| eClass 7.0: | 27270801 |
| eClass 7.1: | 27270801 |
| eClass 8.0: | 27270801 |
| eClass 9.0: | 27270801 |
| eClass 9.1: | 27270801 |
| ETIM-6.0: | EC001825 |
| ETIM-7.0: | EC001825 |
| IPF Product Group: | 169 |
| shipping weight: | 0.18kg |
| packaging dimensions: | 99.0mm x 60mm x 160mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
