Product
IPF
PT490072
Request a Quote
Image copyright: IPF

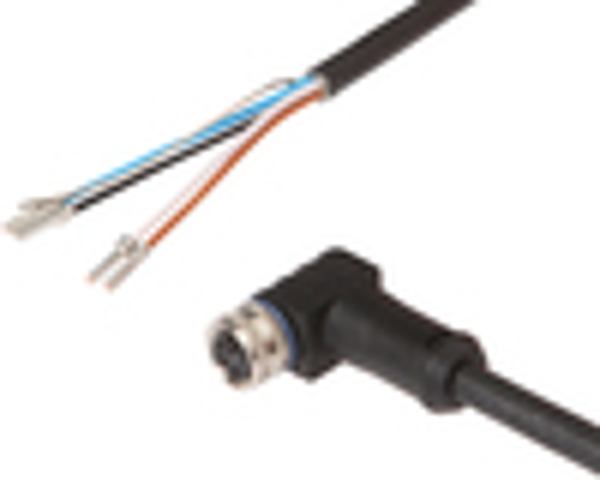

IPF PT490072
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Ambient temperature: | 0 - 50°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 48.2mm |
| Housing material: | Aluminum |
| Material of optical surface: | Glass |
| Sensor width: | 13.4mm |
| Sensor length: | 40mm |
| Voltage type: | DC |
| Number of pins: | 4 |
| Type of analog output: | 4 mA ... 20 mA |
| Setting procedure: | Teach-In |
| Measuring method for optical distance measurement: | Triangulation |
| Short-circuit protection: | yes |
| Reverse polarity protection: | yes |
| Decay time: | 2ms |
| Absolute linearity deviation: | 3.5mm |
| Reichweite: | 550mm |
| Scanning principle: | Reflection sensor |
| Type of electrical connection: | Connector M8 |
| No-load current: | 100mA |
| Supply voltage: | 12 - 28V |
| Measuring range length: | 50 - 550mm |
| Response time: | 2ms |
| Response/decay time: | 2ms |
| Relative linearity deviation: | 3.5% |
| Laser protection class: | Class 2 |
| Wavelength of the sensor: | 675nm |
| Light beam form: | Point |
| Light spot, laser focus: | 0.79mm² |
| Light source: | Laser diode, red light |
| Resolution: | 1150µm |
| Teach-in limits distance: | 10mm |
| Light spot range: | 3.14 - 3.14mm² |
| eClass 7.0: | 27270801 |
| eClass 7.1: | 27270801 |
| eClass 8.0: | 27270801 |
| eClass 9.0: | 27270801 |
| eClass 9.1: | 27270801 |
| ETIM-6.0: | EC001825 |
| ETIM-7.0: | EC001825 |
| IPF Product Group: | 169 |
| shipping weight: | 0.1kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
