Product
IPF
PT440302
Request a Quote
Image copyright: IPF

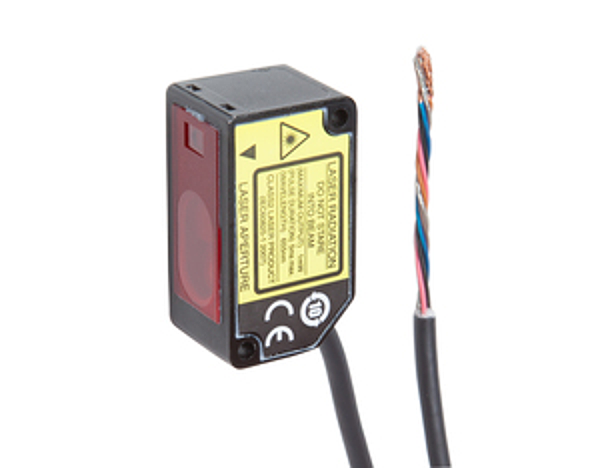

IPF PT440302
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.2mm² |
| Design: | Cuboid |
| Number of cores: | 5 |
| Material of optical surface: | Acrylic glass |
| Sensor width: | 20mm |
| Sensor length: | 25mm |
| Cable length: | 2m |
| Housing material: | Metal |
| Ambient temperature: | -10 - 45°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 44mm |
| Storage temperature: | -20 - 60°C |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Type of analog output: | 0V ... 5V / 4mA ... 20mA |
| Type of switching output: | PNP |
| Operating voltage: | 12 - 24 |
| No-load current: | 60mA |
| Relative repeat accuracy: | 0.2% |
| Rated switching current: | 50mA |
| Scanning function: | Light-/dark-on mode |
| Reverse polarity protection: | yes |
| Residual ripple: | 10% |
| Laser power: | 1mW |
| Reichweite: | 135mm |
| Scanning principle: | Reflection sensor |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally closed contact/normally open contact |
| Setting procedure: | Parameterization |
| Measuring method for optical distance measurement: | Triangulation |
| Supply voltage: | 12 - 24V |
| Short-circuit protection: | yes |
| Measuring range length: | 65 - 135mm |
| Response time: | 5ms |
| Decay time: | 5ms |
| Absolute linearity deviation: | 0.1mm |
| Relative linearity deviation: | 0.1% |
| AWG number: | 24 |
| Laser protection class: | Class 2 |
| Light spot: | 0.01mm² |
| Resolution: | 70µm |
| Light spot, laser focus: | 0.01mm² |
| Light source: | Laser diode, red light |
| Wavelength of the sensor: | 655nm |
| Light beam form: | Point |
| Light spot range: | 0.01 - 0.01mm² |
| eClass 7.0: | 27270904 |
| eClass 7.1: | 27270904 |
| eClass 8.0: | 27270904 |
| eClass 9.0: | 27270904 |
| eClass 9.1: | 27270904 |
| ETIM-6.0: | EC001825 |
| ETIM-7.0: | EC001825 |
| IPF Product Group: | 160 |
| shipping weight: | 0.13kg |
| packaging dimensions: | 70mm x 40mm x 125.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
