Product
IPF
PK140470
Request a Quote

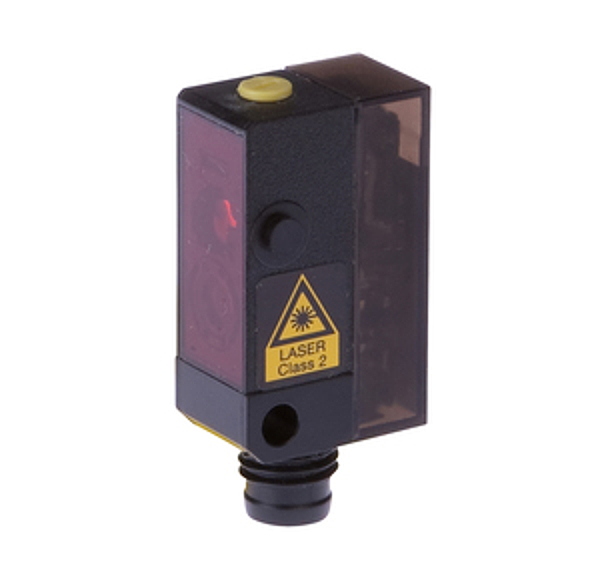

Image copyright: IPF
IPF PK140470
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Material of optical surface: | PMMA |
| Sensor width: | 12mm |
| Sensor length: | 16.3mm |
| Ambient temperature: | -10 - 50°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 33.7mm |
| Max. tightening torque: | 0.5Nm |
| Voltage type: | DC |
| Switching frequency: | 10000Hz |
| Type of switching output: | PNP |
| Operating voltage: | 10 - 30V |
| No-load current: | 50mA |
| Short-circuit protection: | yes |
| Reverse polarity protection: | yes |
| Programmable via software: | no |
| Analogue output 0 V ... 5,5 V: | no |
| Number of pins: | 4 |
| Type of electrical connection: | Connector M8 |
| Rated control supply voltage Us at DC: | 10 - 30V |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 100mA |
| Sensing range: | 0 - 150mm |
| Voltage drop: | 1.8V |
| Light color, selectable: | no |
| Laser protection class: | Class 2 |
| Nominal sensing range: | 150mm |
| Detection of fluorescent materials: | no |
| Transmitted light applications: | no |
| Light source: | Laser diode, red light |
| Detection of print marks: | no |
| Turbidity inspection: | no |
| eClass 7.0: | 27270906 |
| eClass 7.1: | 27270906 |
| eClass 8.0: | 27270906 |
| eClass 9.0: | 27270906 |
| eClass 9.1: | 27270906 |
| ETIM-6.0: | EC001820 |
| ETIM-7.0: | EC001820 |
| IPF Product Group: | 168 |
| shipping weight: | 0.03kg |
| packaging dimensions: | 75.0mm x 17.0mm x 95.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
