Product
IPF
PG156501
Request a Quote

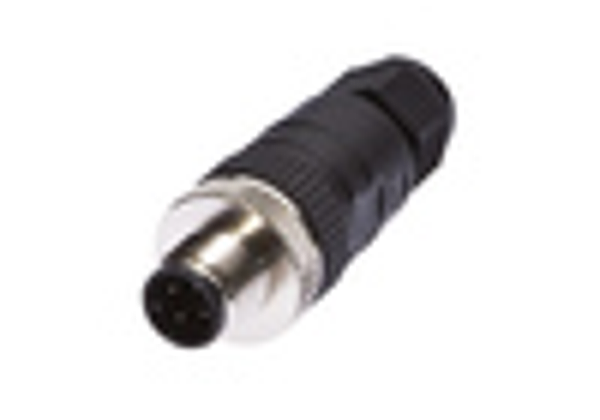

Image copyright: IPF
IPF PG156501
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable length: | 1m |
| Housing material: | Aluminum |
| Material of optical surface: | Glass |
| Degree of protection (IP): | IP67 |
| Sensor height: | 29mm |
| Fork depth: | 13.5mm |
| Fork light barrier design: | Furcate |
| Installation bracket: | no |
| Design: | Cuboid |
| Ambient temperature: | -20 - 50°C |
| Material of cable sheath: | PUR (Polyurethane) |
| Sensor width: | 31.5mm |
| Sensor length: | 6mm |
| Fork width: | 15mm |
| Aperture diameter: | 0.8mm |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally closed contact/normally open contact |
| Operating voltage: | 12 - 30V |
| Relative repeat accuracy: | 0.01mm |
| Short-circuit protection: | yes |
| Reverse polarity protection: | yes |
| Connection to amplifier: | no |
| Type of the forked light barrier: | Standard |
| Dynamic switching output: | no |
| Number of pins: | 4 |
| Switching frequency: | 25000Hz |
| Type of switching output: | PNP/NPN |
| Equipment protection class: | Protection class 3 |
| No-load current: | 20mA |
| Rated switching current: | 100mA |
| Scanning function: | Light-/dark-on mode |
| Response time: | 0.02ms |
| Decay time: | 0.02ms |
| Repeatability +/-: | 10µm |
| Laser protection class: | Class 1 |
| Resolution: | 400µm |
| Light wavelength of the transmitter diode: | 850nm |
| Min. object size: | 0.01mm |
| Light beam form: | Point |
| Light color of the transmitter diode: | Infrared light |
| eClass 7.0: | 27270909 |
| eClass 7.1: | 27270909 |
| eClass 8.0: | 27270909 |
| eClass 9.0: | 27270909 |
| eClass 9.1: | 27270909 |
| ETIM-6.0: | EC002720 |
| ETIM-7.0: | EC002720 |
| IPF Product Group: | 170 |
| shipping weight: | 0.05kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
