Product
IPF
OY350109
Request a Quote

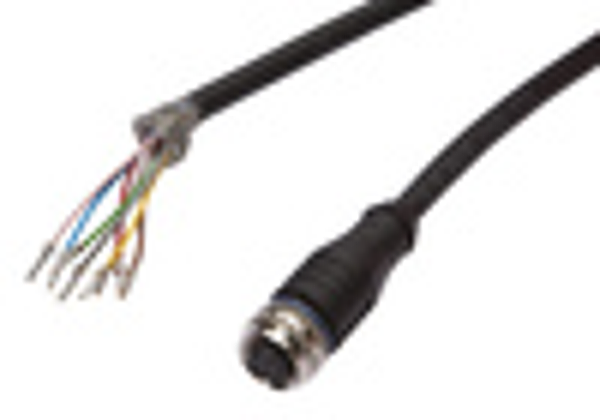

Image copyright: IPF
IPF OY350109
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Housing material: | Aluminum with macrolon plastic cover panel |
| Protected field height: | 1503mm |
| Sensor width: | 35mm |
| Sensor length: | 1579mm |
| Ambient temperature: | -10 - 55°C |
| Degree of protection (IP): | IP65 |
| Sensor height: | 40mm |
| Voltage type: | DC |
| Number of safe semiconductor outputs: | 2 |
| Switching output type of the OSSD: | PNP |
| Type of switching function: | Normally open contact (NO) |
| Equipment protection class: | Protection class 3 |
| With muting function: | yes |
| Reaction time: | 30ms |
| Short-circuit protection: | yes |
| Number of pins, receiver: | 8 |
| No-load current, receiver: | 100mA |
| Cascadable: | no |
| Suppression possible: | no |
| Type of electrical connection: | Connector M12 |
| Rated control supply voltage Us at DC: | 24 - 24V |
| Max. output current at safe output: | 250mA |
| Override possible: | yes |
| Switching voltage of OSSD at state "high": | 24V |
| Reverse polarity protection: | yes |
| Number of pins, transmitter: | 4 |
| No-load current, transmitter: | 70mA |
| Explosion safety category for gas: | None |
| Scope of delivery of the one-way system: | Transmitter and receiver |
| Safety category: | Category 4 |
| Explosion safety category for dust: | None |
| Safety type in acc. with IEC 61496-1: | 4 |
| Detection capability for samples: | 30mm |
| Beam spacing: | 18.4mm |
| Resolution of the light curtain: | 30mm |
| Min. distance: | 0.3m |
| Protected field range: | 15m |
| Wavelength of the sensor: | 880nm |
| Number of beams: | 80 |
| eClass 7.0: | 27270910 |
| eClass 7.1: | 27270910 |
| eClass 8.0: | 27270910 |
| eClass 9.0: | 27270910 |
| eClass 9.1: | 27270910 |
| ETIM-6.0: | EC002549 |
| ETIM-7.0: | EC002549 |
| IPF Product Group: | 710 |
| shipping weight: | 7.39kg |
| packaging dimensions: | 190mm x 103.0mm x 1825.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
