Product
IPF
OT595980
Request a Quote

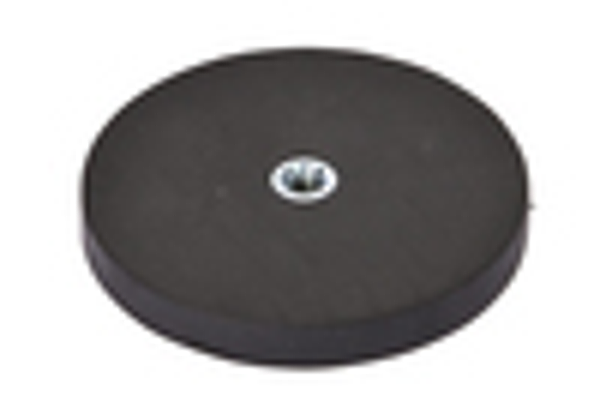

Image copyright: IPF
IPF OT595980
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Ambient temperature: | -25 - 55°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 68mm |
| Shock resistance: | 50g |
| Housing material: | Plastic ABS |
| Material of optical surface: | Plastic PC |
| Sensor width: | 26mm |
| Sensor length: | 68mm |
| Vibration resistance: | 55Hz |
| Voltage type: | AC/DC |
| Turn-off delay: | 0.1 - 5s |
| Number of switching outputs: | 1 |
| Switching frequency: | 25Hz |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 24 - 240V |
| Operating voltage: | 24 - 240V |
| Rated switching current: | 100mA |
| Scanning function: | Light-/dark-on mode |
| Sensing range: | 200 - 1000mm |
| Response time: | 20ms |
| Min. switching distance: | 100mm |
| Power consumption: | 5VA |
| Adjustment range: | 200 - 1000mm |
| Type of electrical connection: | Clamp |
| Type of switching function: | Normally open contact (NO) |
| Rated control supply voltage Us at DC: | 12 - 240V |
| Setting procedure: | Manual adjustment |
| Max. switching distance: | 1000mm |
| Rated switching distance: | 1000mm |
| Reverse polarity protection: | yes |
| Hysteresis: | 10% |
| Light source: | Infrared light |
| Triangulation: | Background suppression |
| Background suppression: | yes |
| Wavelength of the sensor: | 880nm |
| Light beam form: | Point |
| eClass 7.0: | 27270904 |
| eClass 7.1: | 27270904 |
| eClass 8.0: | 27270904 |
| eClass 9.0: | 27270904 |
| eClass 9.1: | 27270904 |
| ETIM-6.0: | EC002719 |
| ETIM-7.0: | EC002719 |
| IPF Product Group: | 100 |
| shipping weight: | 0.16kg |
| packaging dimensions: | 99.0mm x 60mm x 160mm |
| customs tariff number: | 85365019 |
| Zolltarifnummer: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
