Product
IPF
OT130170
Request a Quote

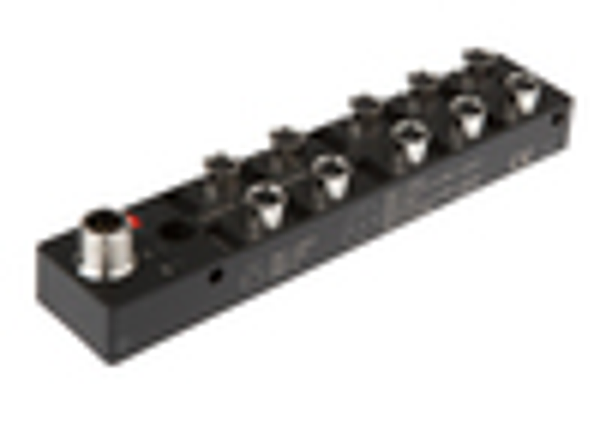

Image copyright: IPF
IPF OT130170
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Housing coating: | Nickel-plated |
| Material of optical surface: | Plastic |
| Sensor width: | 12mm |
| Sensor length: | 12mm |
| Housing material: | Brass |
| Ambient temperature: | -5 - 70°C |
| Degree of protection (IP): | IP64 |
| Sensor height: | 69mm |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Type of electrical connection: | Connector M8 |
| Type of switching function: | Normally open contact (NO) |
| Operating voltage: | 10 - 35V |
| No-load current: | 10mA |
| Rated switching current: | 200mA |
| Max. switching distance: | 200mm |
| Sensing range: | 0 - 200mm |
| Response time: | 5ms |
| Voltage drop: | 1.8V |
| Decay time: | 5ms |
| Number of pins: | 3 |
| Switching frequency: | 100Hz |
| Type of switching output: | PNP |
| Equipment protection class: | Protection class 3 |
| Setting procedure: | Manual adjustment |
| Relative repeat accuracy: | 10% |
| Short-circuit protection: | yes |
| Scanning function: | Light switching |
| Reverse polarity protection: | yes |
| Hysteresis: | 20% |
| Readiness delay: | 15ms |
| Light source: | Infrared light |
| Light exit: | Axial |
| Wavelength of the sensor: | 880nm |
| Light beam form: | Point |
| eClass 7.0: | 27270903 |
| eClass 7.1: | 27270903 |
| eClass 8.0: | 27270903 |
| eClass 9.0: | 27270903 |
| eClass 9.1: | 27270903 |
| ETIM-6.0: | EC001821 |
| ETIM-7.0: | EC001821 |
| IPF Product Group: | 100 |
| shipping weight: | 0.04kg |
| packaging dimensions: | 75.0mm x 17.0mm x 95.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
