Product
IPF
OT08E185
Request a Quote

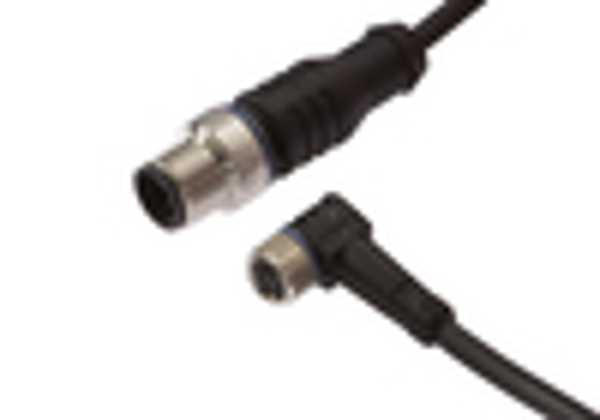

Image copyright: IPF
IPF OT08E185
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Thread length: | 21.2mm |
| Housing material: | Stainless steel 1.4305 |
| Thread size, metric: | 8 |
| Material of optical surface: | PMMA |
| Sensor length: | 41.3mm |
| Design: | Cylinder, screw-thread |
| Ambient temperature: | -5 - 55°C |
| Thread pitch: | 1mm |
| Degree of protection (IP): | IP67 |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Type of electrical connection: | Connector M8 |
| Type of switching function: | Normally open contact (NO) |
| Operating voltage: | 10 - 30V |
| Rated switching current: | 100mA |
| Max. switching distance: | 60mm |
| Sensing range: | 1 - 60mm |
| Response time: | 1ms |
| Voltage drop: | 0.7V |
| Decay time: | 1ms |
| Number of pins: | 3 |
| Switching frequency: | 500Hz |
| Type of switching output: | PNP |
| Equipment protection class: | Protection class 3 |
| No-load current: | 15mA |
| Short-circuit protection: | yes |
| Scanning function: | Light switching |
| Reverse polarity protection: | yes |
| Residual ripple: | 10% |
| Readiness delay: | 20ms |
| Light source: | Polarity free red light |
| Wavelength of the sensor: | 645nm |
| Light beam form: | Point |
| Light spot: | 25mm² |
| Light exit: | Axial |
| eClass 7.0: | 27270903 |
| eClass 7.1: | 27270903 |
| eClass 8.0: | 27270903 |
| eClass 9.0: | 27270903 |
| eClass 9.1: | 27270903 |
| ETIM-6.0: | EC001821 |
| ETIM-7.0: | EC001821 |
| IPF Product Group: | 700 |
| shipping weight: | 0.02kg |
| packaging dimensions: | 75.0mm x 17.0mm x 95.0mm |
| customs tariff number: | 85365019 |
