Product
IPF
OR380421
Request a Quote

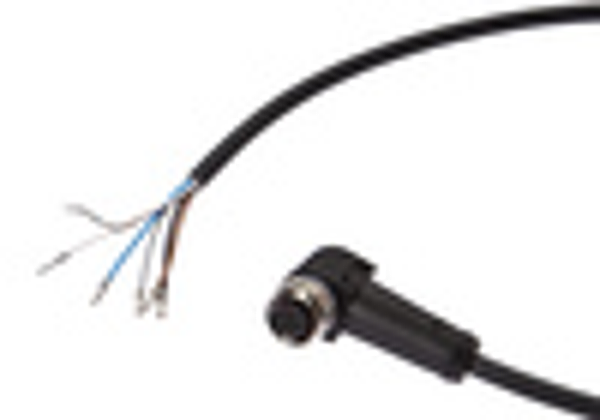

Image copyright: IPF
IPF OR380421
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Design: | Cuboid |
| Ambient temperature: | -40 - 60°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 48mm |
| Housing material: | Metal |
| Material of optical surface: | Glass |
| Sensor width: | 15mm |
| Sensor length: | 38mm |
| Voltage type: | DC |
| Type of input voltage: | DC |
| Type of electrical connection: | Connector M12 |
| Type of switching function: | Anticoincidence |
| Setting procedure: | Manual adjustment |
| Rated switching current: | 100mA |
| Max. switching distance: | 2000mm |
| Rated switching distance: | 2000mm |
| Response time: | 0.33ms |
| Readiness delay: | 650ms |
| With polarizing filter: | no |
| Number of pins: | 5 |
| Switching frequency: | 1500Hz |
| Type of switching output: | PNP |
| Operating voltage: | 10 - 30V |
| No-load current: | 35mA |
| Short-circuit protection: | yes |
| Scanning function: | Light-/dark-on mode |
| Reverse polarity protection: | yes |
| Residual ripple: | 15% |
| Decay time: | 0.33ms |
| Function test: | no |
| Light source: | Infrared light |
| Light beam form: | Point |
| Wavelength of the sensor: | 660nm |
| For transparent objects: | no |
| eClass 7.0: | 27270902 |
| eClass 7.1: | 27270902 |
| eClass 8.0: | 27270902 |
| eClass 9.0: | 27270902 |
| eClass 9.1: | 27270902 |
| ETIM-6.0: | EC002717 |
| ETIM-7.0: | EC002717 |
| IPF Product Group: | 100 |
| shipping weight: | 0.09kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
