Product
IPF
OE136070
Request a Quote
Image copyright: IPF

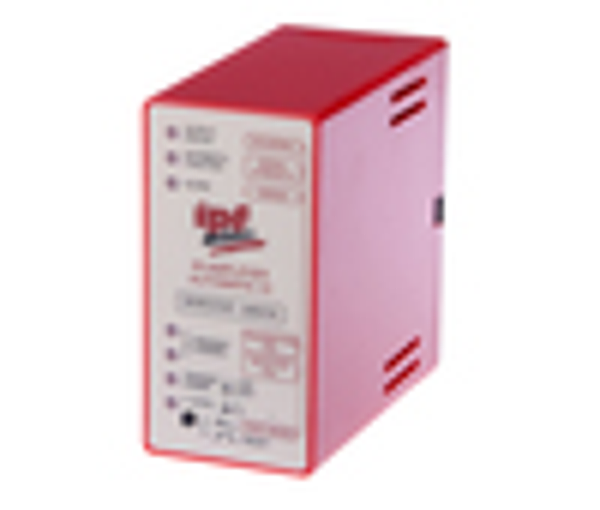

IPF OE136070
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | Through-beam sensor receiver |
| Housing material: | Aluminum |
| Material of optical surface: | Plastic |
| Sensor width: | 12mm |
| Sensor length: | 12mm |
| Vibration resistance: | 55Hz |
| Design: | Cuboid |
| Ambient temperature: | -25 - 60°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 66.8mm |
| Shock resistance: | 30g |
| Storage temperature: | -40 - 80°C |
| Type of input voltage: | DC |
| Type of electrical connection: | Connector M8 |
| Connection to amplifier: | yes |
| Switching frequency: | 15Hz |
| Max. switching distance: | 70m |
| Scope of delivery of the one-way system: | Receiver |
| Angle of beam spread: | 25° |
| Wavelength of the sensor: | 880nm |
| Light source: | Infrared light |
| Light beam form: | Point |
| eClass 7.0: | 27270901 |
| eClass 7.1: | 27270901 |
| eClass 8.0: | 27270901 |
| eClass 9.0: | 27270901 |
| eClass 9.1: | 27270901 |
| ETIM-6.0: | EC002716 |
| ETIM-7.0: | EC002716 |
| IPF Product Group: | 101 |
| shipping weight: | 0.03kg |
| packaging dimensions: | 75.0mm x 17.0mm x 95.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
