Product
IPF
NCLG4001
Request a Quote

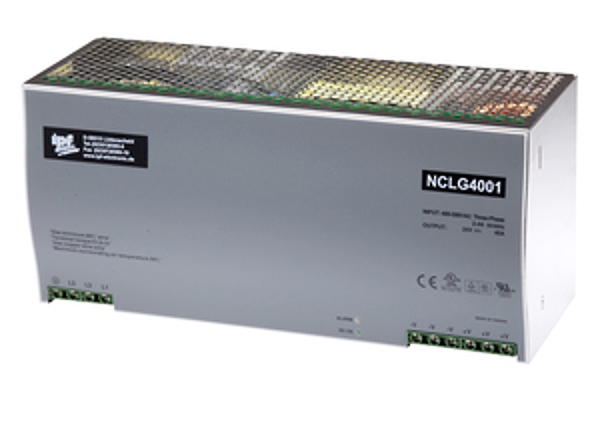

Image copyright: IPF
IPF NCLG4001
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 276mm |
| Depth: | 100mm |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP20 |
| Height: | 125.2mm |
| Weight: | 3300g |
| Ambient temperature: | -20 - 60°C |
| Storage temperature: | -40 - 85°C |
| Output voltage: | 24V |
| Voltage type of supply voltage: | AC |
| Type of electrical connection: | Screw connection |
| 1. output voltage: | 24 - 28V |
| Max. output current 1: | 40A |
| Overload protection: | 105 … 150% of the power consumption |
| Frequency: | 47 - 63Hz |
| Power output: | 960W |
| Max. input current: | 2A |
| Rated supply voltage at AC 50 Hz: | 340 - 550V |
| Residual ripple: | 1% |
| Output voltage, pulsed: | yes |
| Air humidity(MIN): | 20 - 90% |
| eClass 7.0: | 27049002 |
| eClass 7.1: | 27049002 |
| eClass 8.0: | 27049002 |
| eClass 9.0: | 27040701 |
| eClass 9.1: | 27040701 |
| ETIM-6.0: | EC002540 |
| ETIM-7.0: | EC002540 |
| IPF Product Group: | 400 |
| shipping weight: | 3.47kg |
| packaging dimensions: | 150mm x 152.0mm x 335.0mm |
| customs tariff number: | 85044090 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
