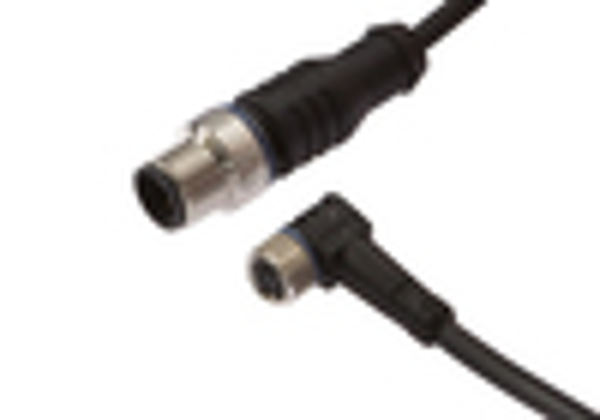

Image copyright: IPF
IPF MZR40175
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | 3.75mm rounded groove |
| Housing material: | Zinc die-cast |
| Degree of protection (IP): | IP67 |
| Sensor width: | 10mm |
| Sensor length: | 27.0mm |
| Mounting access, cylinder groove: | Lateral |
| Design: | Cuboid |
| Ambient temperature: | -25 - 70°C |
| Tightening torque: | 0.1Nm |
| Sensor height: | 16mm |
| Sensor surface position: | Border area of the device |
| Type of rounded groove: | 3.75mm rounded groove |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Type of electrical connection: | Connector M8 |
| Type of switching function: | Normally open contact |
| No-load current: | 15mA |
| Rated switching current: | 200mA |
| Reverse polarity protection: | yes |
| Voltage drop: | 2V |
| Magnetic sensitivity: | 2.8mT |
| Number of pins: | 3 |
| Switching frequency: | 1000Hz |
| Type of switching output: | PNP |
| Operating voltage: | 10 - 30V |
| Cross/short circuit identification possible: | no |
| Short-circuit protection: | yes |
| Hysteresis: | 1mm |
| Sensor surface (active): | Middle area |
| Cylinder version: | With C-groove (round groove) |
| eClass 7.0: | 27270105 |
| eClass 7.1: | 27270105 |
| eClass 8.0: | 27270105 |
| eClass 9.0: | 27270105 |
| eClass 9.1: | 27270105 |
| ETIM-6.0: | EC002544 |
| ETIM-7.0: | EC002544 |
| IPF Product Group: | 220 |
| shipping weight: | 0.02kg |
| packaging dimensions: | 100mm x 17.0mm x 120mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
