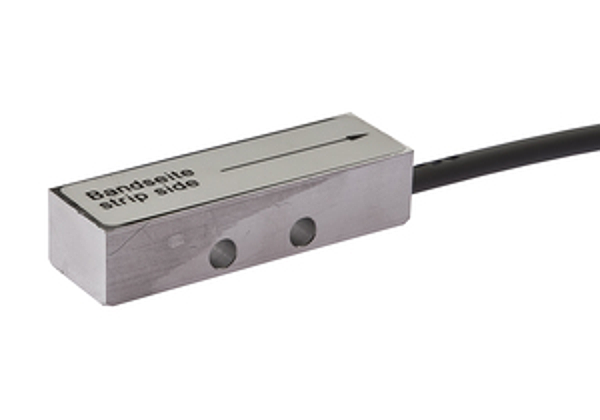

IPF MW991154
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable length: | 5m |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP67 |
| Sensor height: | 15mm |
| Storage temperature: | -20 - 80°C |
| Shock resistance, pulse time: | 11ms |
| Vibration resistance, frequency: | 50Hz |
| Length: | 65mm |
| Material of cable sheath: | PVC |
| Sensor width: | 20mm |
| Sensor length: | 65mm |
| Shock resistance, acceleration: | 50g |
| Vibration resistance, acceleration: | 10g |
| Max. traverse speed: | 5m/s |
| Number of pins: | 9 |
| Type of switching output: | TTL level |
| Resolution: | 10µm |
| Absolute repeat accuracy: | 10µm |
| Type of electrical connection: | Cable |
| Sensing range: | 0.1 - 1mm |
| Max. measuring length: | 5120mm |
| Relative air humidity: | 100% |
| eClass 7.0: | 27270790 |
| eClass 7.1: | 27270790 |
| eClass 8.0: | 27270790 |
| eClass 9.0: | 27270790 |
| eClass 9.1: | 27270790 |
| ETIM-6.0: | EC001852 |
| ETIM-7.0: | EC001852 |
| IPF Product Group: | 700 |
| shipping weight: | 0.29kg |
| packaging dimensions: | 200mm x 40mm x 300mm |
| customs tariff number: | 90318020 |
