Product
IPF
MV56C718
Request a Quote
Image copyright: IPF

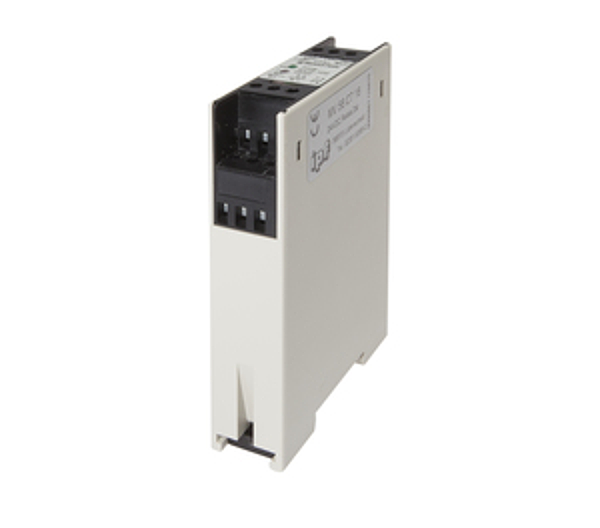

IPF MV56C718
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | Snap mounting mounting rail |
| Height: | 75mm |
| Design: | Cuboid |
| Housing material: | Plastic PC |
| Device design: | Built-in device |
| Width: | 22.5mm |
| Depth: | 98.5mm |
| Length: | 98.5mm |
| Degree of protection (IP): | IP20 |
| Voltage type: | DC |
| Power consumption: | 1.4W |
| Type of voltage supply: | Active |
| Type of electrical connection: | Clamps |
| Output circuit, relay normally open contact: | 1 |
| Malfunction message output: | yes |
| Switching voltage DC: | 230V |
| Number of channels: | 2 |
| Switching capacity: | 1700VA |
| Switching voltage: | 250V |
| Rated switching current: | 8A |
| Rated supply voltage at DC: | 24 - 24V |
| No-load current: | 60mA |
| Switching voltage AC: | 24 |
| Operating temperature: | 0 - 55°C |
| eClass 7.0: | 27371819 |
| eClass 7.1: | 27371819 |
| eClass 8.0: | 27371819 |
| eClass 9.0: | 27371819 |
| eClass 9.1: | 27371819 |
| ETIM-6.0: | EC001485 |
| ETIM-7.0: | EC001485 |
| IPF Product Group: | 700 |
| shipping weight: | 0.2kg |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
