Product
IPF
MR15A307
Request a Quote
Image copyright: IPF

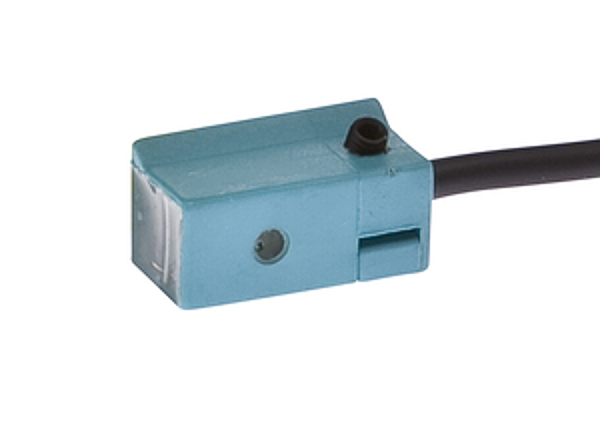

IPF MR15A307
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Version: | Trapezoidal groove |
| Design: | Cuboid |
| Number of cores: | 3 |
| Material of cable sheath: | PVC |
| Sensor width: | 20mm |
| Sensor length: | 10mm |
| Mounting access, cylinder groove: | Lateral |
| Cable length: | 2.5m |
| Housing material: | Plastic |
| Ambient temperature: | -25 - 80°C |
| Degree of protection (IP): | IP67 |
| Sensor height: | 10.5mm |
| Sensor surface position: | Center of the device |
| Voltage type: | DC |
| Number of switching outputs: | 1 |
| Type of switching output: | Dry reed contact |
| Operating voltage: | 10 - 30V |
| Rated switching current: | 150mA |
| Reverse polarity protection: | yes |
| Switching capacity: | 2W |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact |
| Cross/short circuit identification possible: | no |
| Short-circuit protection: | no |
| eClass 7.0: | 27270105 |
| eClass 7.1: | 27270105 |
| eClass 8.0: | 27270105 |
| eClass 9.0: | 27270105 |
| eClass 9.1: | 27270105 |
| ETIM-6.0: | EC002544 |
| ETIM-7.0: | EC002544 |
| IPF Product Group: | 700 |
| shipping weight: | 0.05kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
