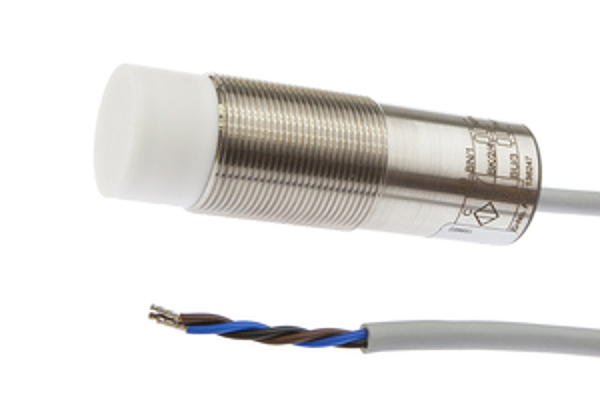

IPF KN990649
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.75mm² |
| Cable length: | 2m |
| Housing material: | Stainless steel (V2A) |
| Ambient temperature: | -60 - 160°C |
| Thread pitch: | 1.5mm |
| Active area material of sensor: | PTFE |
| Degree of protection (IP): | IP67 |
| Sensor length: | 100mm |
| Thread length: | 40mm |
| Design: | Cylinder, screw-thread |
| Number of cores: | 3 |
| Thread size, metric: | 32 |
| Mechanical mounting condition for sensor: | Non-flush |
| Material of cable sheath: | PUR (Polyurethane) |
| Pressure-proof: | no |
| Voltage type: | DC |
| Switching frequency: | 50Hz |
| Type of electrical connection: | Cable |
| Type of switching function: | Programmable/configurable |
| No-load current: | 15mA |
| Rated switching current: | 400mA |
| Reverse polarity protection: | yes |
| Voltage drop: | 2V |
| Cascadable: | no |
| Switching distance: | 20mm |
| Type of switching output: | PNP/NPN |
| Setting procedure: | Manual adjustment |
| Supply voltage: | 10 - 35V |
| Short-circuit protection: | yes |
| Residual ripple: | 10% |
| eClass 7.0: | 27270102 |
| eClass 7.1: | 27270102 |
| eClass 8.0: | 27270102 |
| eClass 9.0: | 27270102 |
| eClass 9.1: | 27270102 |
| ETIM-6.0: | EC002715 |
| ETIM-7.0: | EC002715 |
| IPF Product Group: | 700 |
| shipping weight: | 0.36kg |
| packaging dimensions: | 124.0mm x 35.0mm x 149.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
