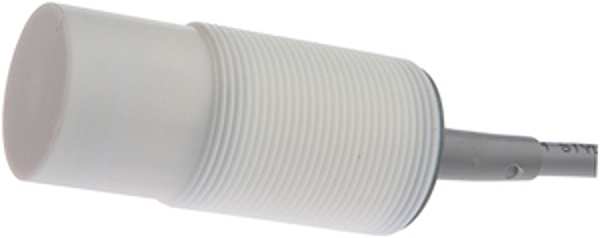

IPF KN32A296
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.5mm² |
| Design: | Cylinder, screw-thread |
| Number of cores: | 4 |
| Thread size, metric: | 32 |
| Mechanical mounting condition for sensor: | Non-flush |
| Pressure-proof: | no |
| Cable length: | 2m |
| Housing material: | PTFE |
| Ambient temperature: | -25 - 100°C |
| Thread pitch: | 1.5mm |
| Degree of protection (IP): | IP67 |
| Sensor length: | 70mm |
| Voltage type: | DC |
| Number of switching outputs: | 2 |
| Switching distance: | 1 - 40mm |
| Type of electrical connection: | Cable |
| Type of switching function: | Anticoincidence |
| No-load current: | 15mA |
| Rated switching current: | 250mA |
| Reverse polarity protection: | yes |
| Cascadable: | no |
| Switching frequency: | 50Hz |
| Switching distance: | 25mm |
| Type of switching output: | PNP |
| Rated control supply voltage Us at DC: | 10 - 35V |
| Supply voltage: | 10 - 35V |
| Short-circuit protection: | yes |
| Voltage drop: | 2V |
| eClass 7.0: | 27270102 |
| eClass 7.1: | 27270102 |
| eClass 8.0: | 27270102 |
| eClass 9.0: | 27270102 |
| eClass 9.1: | 27270102 |
| ETIM-6.0: | EC002715 |
| ETIM-7.0: | EC002715 |
| IPF Product Group: | 700 |
| shipping weight: | 0.26kg |
| packaging dimensions: | 124.0mm x 35.0mm x 149.0mm |
| customs tariff number: | 85365019 |
