Product
IPF
KB250100
Request a Quote

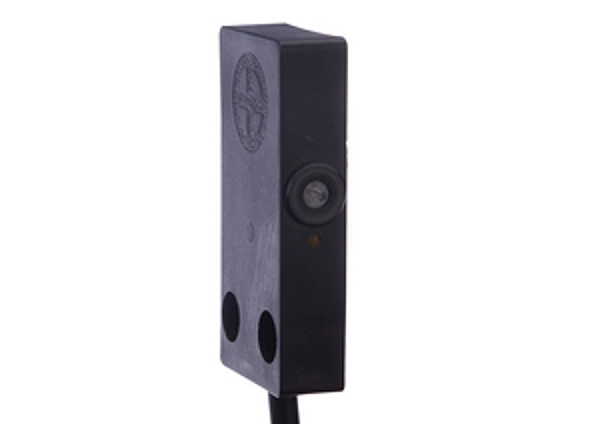

Image copyright: IPF
IPF KB250100
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Wire cross section: | 0.34mm² |
| Design: | Cuboid |
| Number of cores: | 3 |
| Mechanical mounting condition for sensor: | Flush |
| Degree of protection (IP): | IP65 |
| Pressure-proof: | no |
| Sensor length: | 10.1mm |
| Cable length: | 1.5m |
| Housing material: | PBT |
| Ambient temperature: | -25 - 75°C |
| Material of cable sheath: | PVC |
| Sensor width: | 25mm |
| Sensor height: | 50mm |
| Voltage type: | DC |
| Switching frequency: | 25Hz |
| Switching distance: | 2 - 8mm |
| Type of switching output: | PNP |
| Rated control supply voltage Us at DC: | 10 - 36V |
| No-load current: | 15mA |
| Rated switching current: | 200mA |
| Reverse polarity protection: | yes |
| Voltage drop: | 1.5V |
| Cascadable: | no |
| Switching distance: | 8mm |
| Type of electrical connection: | Cable |
| Type of switching function: | Normally open contact |
| Setting procedure: | Manual adjustment |
| Supply voltage: | 10 - 36V |
| Short-circuit protection: | yes |
| Hysteresis: | 20% |
| eClass 7.0: | 27270102 |
| eClass 7.1: | 27270102 |
| eClass 8.0: | 27270102 |
| eClass 9.0: | 27270102 |
| eClass 9.1: | 27270102 |
| ETIM-6.0: | EC002715 |
| ETIM-7.0: | EC002715 |
| IPF Product Group: | 245 |
| shipping weight: | 0.09kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
