Product
IPF
IN50C543
Request a Quote
Image copyright: IPF

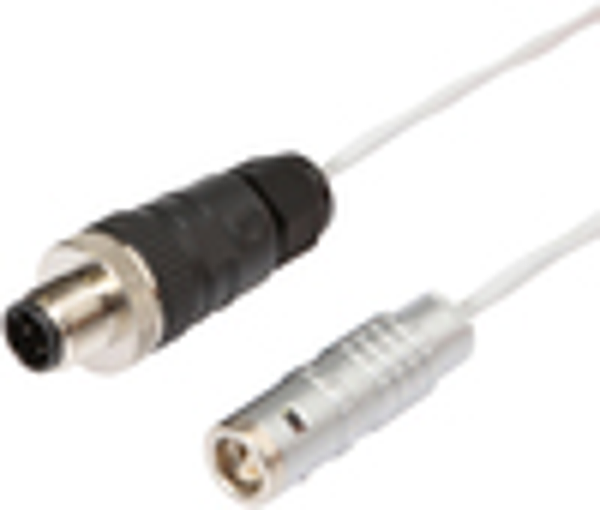

IPF IN50C543
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable infeed: | Axial |
| Thread length: | 40mm |
| Housing material: | Stainless steel 1.4305 |
| Thread size, metric: | 50 |
| Mechanical mounting condition for sensor: | Non-flush |
| Degree of protection (IP): | IP68 |
| Sensor length: | 84mm |
| Design: | Cylinder, screw-thread |
| Ambient temperature: | 0 - 230°C |
| Thread pitch: | 1.5mm |
| Active area material of sensor: | Vectra® |
| Pressure-proof: | no |
| Alignment of cable entry: | Axial |
| Cascadable: | no |
| Switching distance: | 25mm |
| Type of switching output: | Other |
| Hysteresis: | 20% |
| Switching frequency: | 150Hz |
| Type of electrical connection: | Lemo-connector |
| Type of switching function: | Amplifier |
| Connection to amplifier: | yes |
| eClass 7.0: | 27270101 |
| eClass 7.1: | 27270101 |
| eClass 8.0: | 27270101 |
| eClass 9.0: | 27270101 |
| eClass 9.1: | 27270101 |
| ETIM-6.0: | EC002714 |
| ETIM-7.0: | EC002714 |
| IPF Product Group: | 700 |
| shipping weight: | 0.64kg |
| packaging dimensions: | 99.0mm x 60mm x 160mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
