Product
IPF
IB990636
Request a Quote
Image copyright: IPF

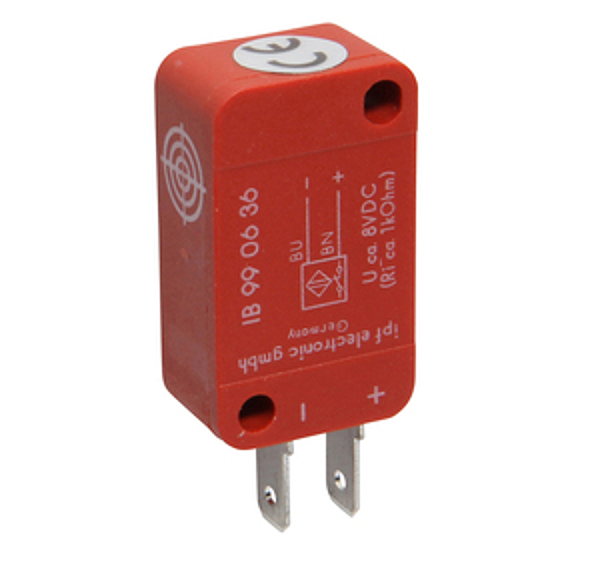

IPF IB990636
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable infeed: | Axial |
| Design: | Cuboid |
| Ambient temperature: | -25 - 85°C |
| Active area material of sensor: | PBT |
| Sensor width: | 16.3mm |
| Sensor height: | 28mm |
| Housing material: | PBT |
| Mechanical mounting condition for sensor: | Flush |
| Degree of protection (IP): | IP65 |
| Pressure-proof: | no |
| Sensor length: | 10.2mm |
| Voltage type: | DC |
| Switching frequency: | 1000Hz |
| Type of electrical connection: | AMP-connector |
| Type of switching function: | Normally closed contact |
| Supply voltage: | 5 - 24V |
| Correction factor (stainl. steel): | 0.7 |
| Correction factor (copper): | 0.2 |
| Cascadable: | no |
| Switching distance: | 2mm |
| Type of switching output: | NAMUR |
| No-load current: | 3mA |
| Rated switching current: | 2.1mA |
| Correction factor (aluminum): | 0.25 |
| Connection to amplifier: | yes |
| eClass 7.0: | 27270101 |
| eClass 7.1: | 27270101 |
| eClass 8.0: | 27270101 |
| eClass 9.0: | 27270101 |
| eClass 9.1: | 27270101 |
| ETIM-6.0: | EC002714 |
| ETIM-7.0: | EC002714 |
| IPF Product Group: | 700 |
| shipping weight: | 0.01kg |
| packaging dimensions: | 100mm x 0.0mm x 120mm |
| customs tariff number: | 85365019 |
