Product
IPF
IB30C194
Request a Quote

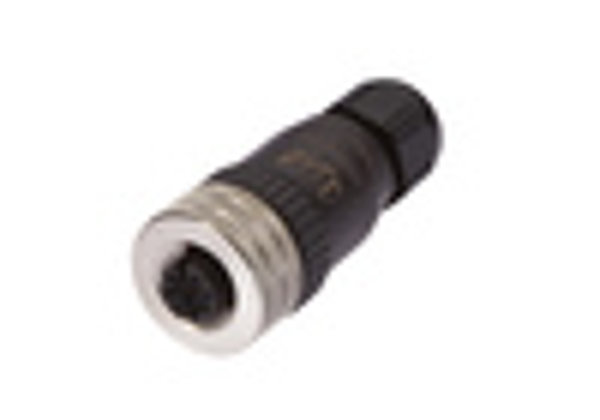

Image copyright: IPF
IPF IB30C194
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Cable infeed: | Axial |
| Thread length: | 18mm |
| Design: | Cylinder, screw-thread |
| Ambient temperature: | 0 - 140°C |
| Thread pitch: | 1.5mm |
| Active area material of sensor: | Vectra® |
| Degree of protection (IP): | IP65 |
| Sensor length: | 27.6mm |
| Cable length: | 16m |
| Housing material: | Stainless steel 1.4305 |
| Thread size, metric: | 30 |
| Mechanical mounting condition for sensor: | Flush |
| Material of cable sheath: | PTFE with stainl. steel mesh |
| Pressure-proof: | no |
| Alignment of cable entry: | Axial |
| Voltage type: | DC |
| Switching frequency: | 200Hz |
| Type of electrical connection: | Cable connector M12 |
| Type of switching function: | Normally open contact |
| Supply voltage: | 10 - 35V |
| Short-circuit protection: | yes |
| Hysteresis: | 15% |
| Norm measuring plate: | 30x30x1mm |
| Cascadable: | no |
| Switching distance: | 8mm |
| Type of switching output: | PNP |
| No-load current: | 15mA |
| Rated switching current: | 150mA |
| Reverse polarity protection: | yes |
| Voltage drop: | 2V |
| eClass 7.0: | 27270101 |
| eClass 7.1: | 27270101 |
| eClass 8.0: | 27270101 |
| eClass 9.0: | 27270101 |
| eClass 9.1: | 27270101 |
| ETIM-6.0: | EC002714 |
| ETIM-7.0: | EC002714 |
| IPF Product Group: | 700 |
| shipping weight: | 0.55kg |
| packaging dimensions: | 200mm x 40mm x 325.0mm |
| customs tariff number: | 85365019 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
