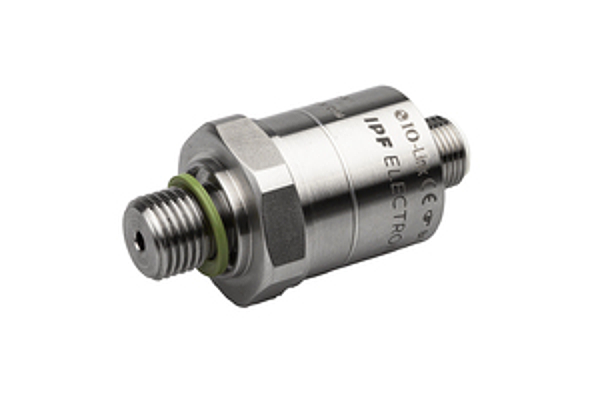

IPF DW25310P
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Thread length: | 12mm |
| Housing material: | Stainless steel 1.4404 |
| Thread pitch: | 1.34mm |
| Bursting pressure: | 2.5bar |
| Sensor diameter: | 26mm |
| Medium temperature: | -40 - 100°C |
| Sensing element material: | Stainless steel 1.4404 |
| Design: | Cylinder plain |
| Ambient temperature: | -40 - 100°C |
| Degree of protection (IP): | IP67 |
| Type of pressure connection: | G1/4 inch A |
| Sensor length: | 57mm |
| Nominal pressure: | 0.25bar |
| Max. operating pressure: | 0.25bar |
| Voltage type: | DC |
| Number of pins: | 4 |
| Number of switching outputs: | 2 |
| Type of electrical connection: | Plug-in connection M12 |
| Type of switching function: | Normally closed contact/normally open contact |
| Setting procedure: | Parameterization |
| Relative linearity deviation: | 0.05% |
| Peak value memory: | yes |
| Rated operating voltage Ue at DC: | 18 - 30V |
| Temperature drift: | 0.05% |
| Response time: | 2ms |
| Residual ripple: | 6% |
| Decay time: | 2ms |
| Measuring range pressure: | 0 - 0.25bar |
| IO-Link compatible: | yes |
| Turn-off delay: | 20s |
| Initial setting: | 0 - 0hPa |
| Type of analog output: | 0 mA ... 20 mA / 4 mA ... 20 mA |
| Type of switching output: | PNP/NPN |
| Operating voltage: | 18 - 30V |
| No-load current: | 20mA |
| Relative measurement accuracy: | 0.5% |
| Rated switching current: | 200mA |
| Short-circuit protection: | yes |
| Reverse polarity protection: | yes |
| Hysteresis: | 1% |
| Readiness delay: | 2000ms |
| Programmable via software: | yes |
| Measurement method: | Relative |
| eClass 7.0: | 27371814 |
| eClass 7.1: | 27371814 |
| eClass 8.0: | 27371814 |
| eClass 9.0: | 27371814 |
| eClass 9.1: | 27371814 |
| ETIM-6.0: | EC000243 |
| ETIM-7.0: | EC000243 |
| IPF Product Group: | 361 |
| shipping weight: | 0.16kg |
| packaging dimensions: | 120mm x 70mm x 170mm |
| customs tariff number: | 90262020 |
