IPF
CM044440
Request a Quote

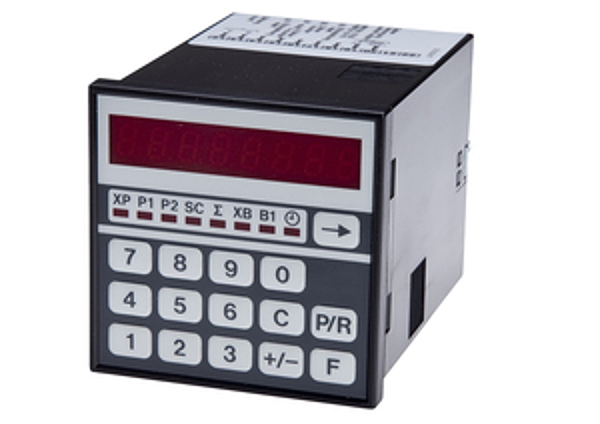

Image copyright: IPF
IPF CM044440
Counter multifunctional, 72x112x72mm, Display LED, 8 decades, 10kHz, 3x preset, 230V AC, 3x Relay contact Change-over contact (NO/NC), Screw connection 26pin, IP65, Polycarbonate, With reset function, Display range -9999999-9999999
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Counters and elapsed-time counters. 115+230VAC,Rel,8stl,versch Vorwahlen
Technical parameters
| Mounting method: | Front mounting |
| Height: | 72mm |
| Length: | 112mm |
| Degree of protection (IP): | IP65 |
| Width: | 72mm |
| Installation depth: | 105mm |
| Housing material: | Plastic PC |
| Voltage type: | AC |
| Display: | LED |
| Number of pins: | 26 |
| Switching voltage: | 250V |
| Input voltage: | 115 - 230V |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 115 - 230V |
| Rated switching current: | 1A |
| Max. output current 1: | 1A |
| Max. output current 3: | 1A |
| Number of decades: | 8 |
| Type of signal input A: | PNP/NPN |
| Display range: | -9999999 - 9999999 |
| Type of 2nd switching function: | Change-over contact (NO/NC) |
| Type of 3rd switching function: | Normally closed contact/normally open contact |
| Timed output: | 0.01 - 99.99s |
| Max. pnp input frequency: | 10000Hz |
| Power consumption: | 6W |
| Switching capacity: | 150VA |
| Number of switching outputs: | 3 |
| Primary voltage: | 230V |
| Type of electrical connection: | Screw connection |
| Type of switching function: | Change-over contact (NO/NC) |
| Input voltage frequency: | 10000Hz |
| 2. output voltage at AC: | 250 - 250V |
| Max. output current 2: | 1A |
| Transducer power supply current: | 80mA |
| Counting frequency: | 10kHz |
| Type of signal input B: | PNP/NPN |
| Type of 2nd switching output: | Relay contact |
| Type of 3rd switching output: | Relay contact |
| Number of presets to be set: | 3 |
| Max. npn input frequency: | 10000Hz |
| Number of characters: | 7 |
| Air humidity(MIN): | 80 - 80% |
| eClass 7.0: | 27200414 |
| eClass 7.1: | 27200414 |
| eClass 8.0: | 27200414 |
| eClass 9.0: | 27200414 |
| eClass 9.1: | 27200414 |
| ETIM-6.0: | EC002300 |
| ETIM-7.0: | EC002300 |
| IPF Product Group: | 500 |
| shipping weight: | 0.59kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 90291000 |
