Product
IPF
BA09A227
Request a Quote
Image copyright: IPF

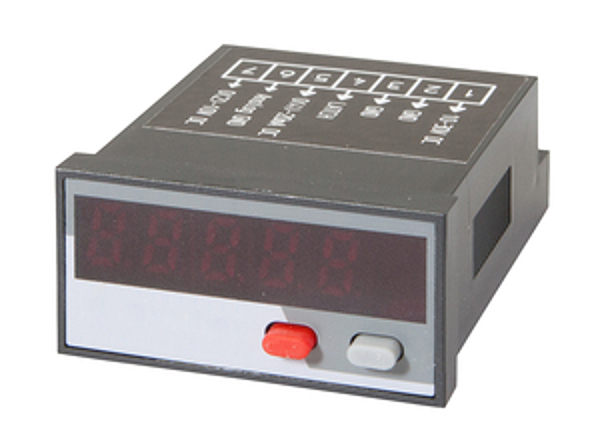

IPF BA09A227
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Mounting method: | Front mounting |
| Height: | 48mm |
| Degree of protection (IP), front side: | IP65 |
| Storage temperature: | -25 - 70°C |
| Width: | 24mm |
| Ambient temperature: | -10 - 50°C |
| Degree of protection (IP): | IP20 |
| Voltage type: | DC |
| Analog input, current: | yes |
| Type of electrical connection: | Clamps |
| Setting procedure: | Parameterization |
| Relative measurement accuracy: | 0.03% |
| Initial value of measuring range, current: | 0A |
| Response time: | 500ms |
| Resistance of current input: | 100Ohm |
| Number of decades: | 5 |
| Display: | LED |
| Analog input, voltage: | yes |
| Rated control supply voltage Us at DC: | 10 - 30V |
| Relative linearity deviation: | 0.01% |
| Temperature drift: | 2%/K |
| End value measuring range, current: | 0.02A |
| Digital resolution: | 14Bit |
| Resistance of voltage input: | 1000kOhm |
| Type of analog input: | 0 V ... 10 V / 4 mA ... 20 mA / 0 … 20 mA |
| Number of display segments: | 5 |
| eClass 7.0: | 27210123 |
| eClass 7.1: | 27210123 |
| eClass 8.0: | 27210123 |
| eClass 9.0: | 27210123 |
| eClass 9.1: | 27210123 |
| ETIM-6.0: | EC002475 |
| ETIM-7.0: | EC002475 |
| IPF Product Group: | 700 |
| shipping weight: | 0.09kg |
| packaging dimensions: | 70mm x 40mm x 125.0mm |
| customs tariff number: | 85437090 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
