Product
IPF
AO000431
Request a Quote
Image copyright: IPF

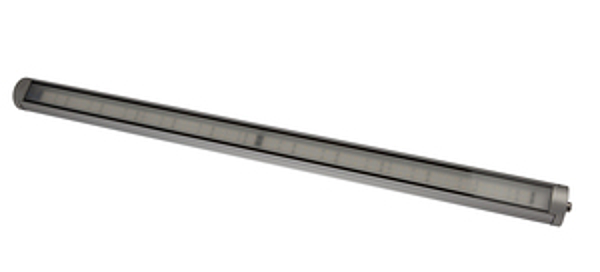

IPF AO000431
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Diameter: | 70mm |
| Length: | 1100mm |
| Degree of protection (IP): | IP67 |
| Design: | Pipe |
| Housing material: | Aluminum |
| Front screen material: | Borosilicate glass |
| Lamp power: | 62W |
| Voltage type: | AC |
| Nominal supply voltage: | 220 - 240V |
| Luminous flux: | 4000lm |
| Type of electrical connection: | M12-S-connector |
| Rated operation current: | 440.00mA |
| Risk groups: | 0 |
| Color temperature: | 5500K |
| Light source: | Cold white |
| Illuminance at 500mm distance: | 4800lx |
| Radiation angle: | 100° |
| Illumination in the center (distance 1 m): | 1200lx |
| Light version: | Machine light |
| eClass 7.0: | 27119010 |
| eClass 7.1: | 27119010 |
| eClass 8.0: | 27119010 |
| eClass 9.0: | 27110345 |
| eClass 9.1: | 27110345 |
| ETIM-7.0: | EC000348 |
| IPF Product Group: | 190 |
| shipping weight: | 4.24kg |
| packaging dimensions: | 160mm x 150mm x 1235.0mm |
| customs tariff number: | 94054099 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
