IPF AO000391

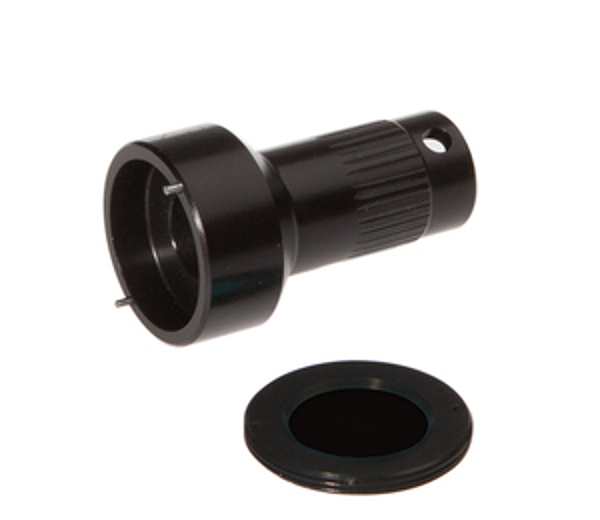

Accessories optical, Daylight-filter, M25.4x0.794, With C-mount thread, Filter color NIR, Aluminum+Glass
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Für OC53962x,OC53972x
Technical parameters
| Version: | Daylight-filter |
| Height: | 2.5mm |
| Material: | Aluminum |
| Thread pitch: | 0.794 |
| Painting: | Black |
| Outer diameter: | 25.4mm |
| Inner diameter: | 15mm |
| Thread size, metric: | 25.4 |
| Material of optical surface: | Glass |
| Filter color: | NIR |
| eClass 7.0: | 27279206 |
| eClass 7.1: | 27279206 |
| eClass 8.0: | 27279206 |
| eClass 9.0: | 27273604 |
| eClass 9.1: | 27273604 |
| ETIM-6.0: | EC001637 |
| ETIM-7.0: | EC001637 |
| IPF Product Group: | 914 |
| shipping weight: | 0.04kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 90319000 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
