Product
IPF
AO000299
Request a Quote
Image copyright: IPF

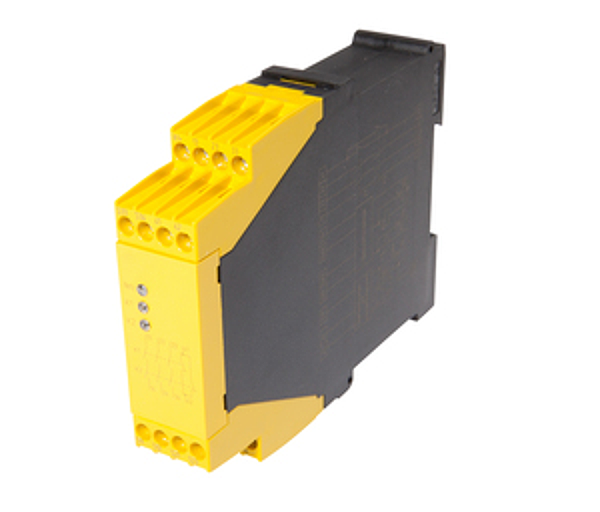

IPF AO000299
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Width: | 22.5mm |
| Height: | 90mm |
| Length: | 118mm |
| Ambient temperature: | -15 - 55°C |
| Version: | Expansion device |
| Depth: | 118mm |
| Housing material: | Plastic |
| Number of normally open contacts: | 3 |
| With start input: | yes |
| Number of outputs, signaling function, undelayed, with contact: | 1 |
| Type of electrical connection: | Screw connection |
| With muting function: | no |
| Voltage type for actuation: | DC |
| Decay time: | 20ms |
| Number of normally closed contacts: | 1 |
| Number of outputs, safety-related, undelayed, with contact: | 3 |
| Switching voltage: | 250 |
| Rated control supply voltage Us at DC: | 24 - 24V |
| Rated switching current: | 4A |
| Evaluation of inputs: | Dual channel |
| No-load current: | 40mA |
| SIL in acc. with IEC 61508: | 3 |
| Performance level in acc. with EN ISO 13849-1: | Level e |
| Category in acc. with EN 954-1: | 4 |
| Suitable for cycle operation: | no |
| eClass 7.0: | 27371819 |
| eClass 7.1: | 27371819 |
| eClass 8.0: | 27371819 |
| eClass 9.0: | 27371819 |
| eClass 9.1: | 27371819 |
| ETIM-6.0: | EC001449 |
| ETIM-7.0: | EC001449 |
| IPF Product Group: | 710 |
| shipping weight: | 0.25kg |
| packaging dimensions: | 140mm x 45.0mm x 170mm |
| customs tariff number: | 85364190 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
