IPF AO000160

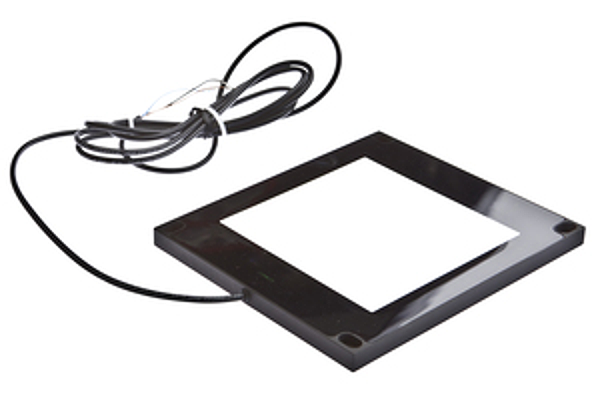

LED Surface area light, camera, 100x100mm, Infrared light, 880nm, 24V DC, Cable, IP65, Aluminum+PMMA
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
For any kind of inspection tasks with a camera sensor the lighting is essential, as only high-contrast images enable reproducible evaluations. Here the lighting has a decisive influence. The choice depends on different factors such as the distance to the test object, its size, the component criteria to be tested or the expected environmental conditions.
Technical parameters
| Width: | 100mm |
| Design: | Cuboid |
| Number of cores: | 4 |
| Front screen material: | PMMA |
| Height: | 100mm |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP65 |
| Voltage type: | DC |
| Nominal supply voltage: | 24 - 24V |
| Rated operation current: | 450.00mA |
| Type of electrical connection: | Cable |
| Short-circuit protection: | yes |
| Reverse polarity protection: | yes |
| Light source: | Infrared light |
| Light version: | Surface area light |
| Wavelength of the lamp: | 880nm |
| eClass 7.0: | 27310204 |
| eClass 7.1: | 27310204 |
| eClass 8.0: | 27310204 |
| eClass 9.0: | 27310204 |
| eClass 9.1: | 27310204 |
| ETIM-7.0: | EC000348 |
| IPF Product Group: | 915 |
| shipping weight: | 0.35kg |
| packaging dimensions: | 230mm x 61.0mm x 290mm |
| customs tariff number: | 94054099 |
