Product
Escha
8055849
IE-FKFDY4-P/16/S38
Request a Quote
Image copyright: Escha

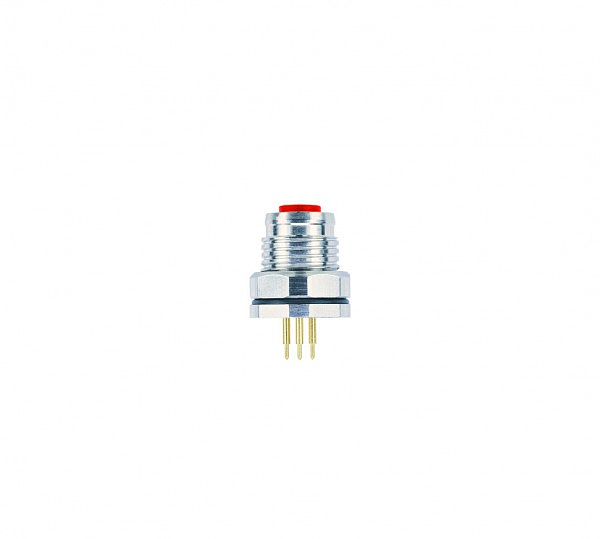

Escha 8055849
IE-FKFDY4-P/16/S38
Receptacle, M12 female, straight, Industrial Ethernet, 4 poles, D-coded, back wall-mounting, print contact
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Fastening thread: | M16x1.5 |
| Transmission features: | Cat5e |
| Connector: | female, straight, M12 |
| Number of pins: | 4 |
| Pin assignment: | 1 YE, 2 WH, 3 OG, 4 BU |
| Coding: | D |
| Rated voltage: | 250V |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, TPU, RD |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Material of external sealing: | NBR |
| Adjustable fixing screw: | Yes |
| Connecting type: | Print contact |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
