Escha 8055776
IE-LVCS8

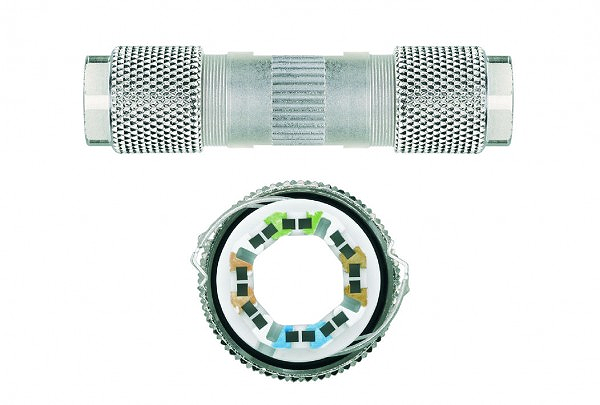

Wiring connector, M12, straight, Industrial Ethernet, 8 poles, shielded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Transmission features: | Cat7 |
| Number of pins: | 8 |
| Pin assignment: | 1 WH/OG, 2OG; 3 WH/GN, 4 GN, 5 WH/BN, 6 BN; 7 WH/BU, 8 BU |
| Rated voltage: | 60V DC |
| Current load (at 40°C): | 0.5 |
| Insulation resistance (Ω): | ≥10 8 |
| Cable outlet: | 5...9,7mm |
| Connecting cross-section: | AWG26/1 - AWG22/1, AWG26/7 - AWG22/7 |
| Ambient temperature product: | -40°C...+85°C |
| Housing material: | Zinc die-cast |
| Contact material: | Metal, CuSn |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Connecting type: | Insulation displacement contact |
| Degree of protection (mounted): | IP65, IP67 |
| Degree of pollution: | 1 |
| Shielding: | with shielding |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
