Product
Escha
8055536
IE-SSPS4.027-1-IE-RJ45SS8.005/S3400
Request a Quote
Image copyright: Escha

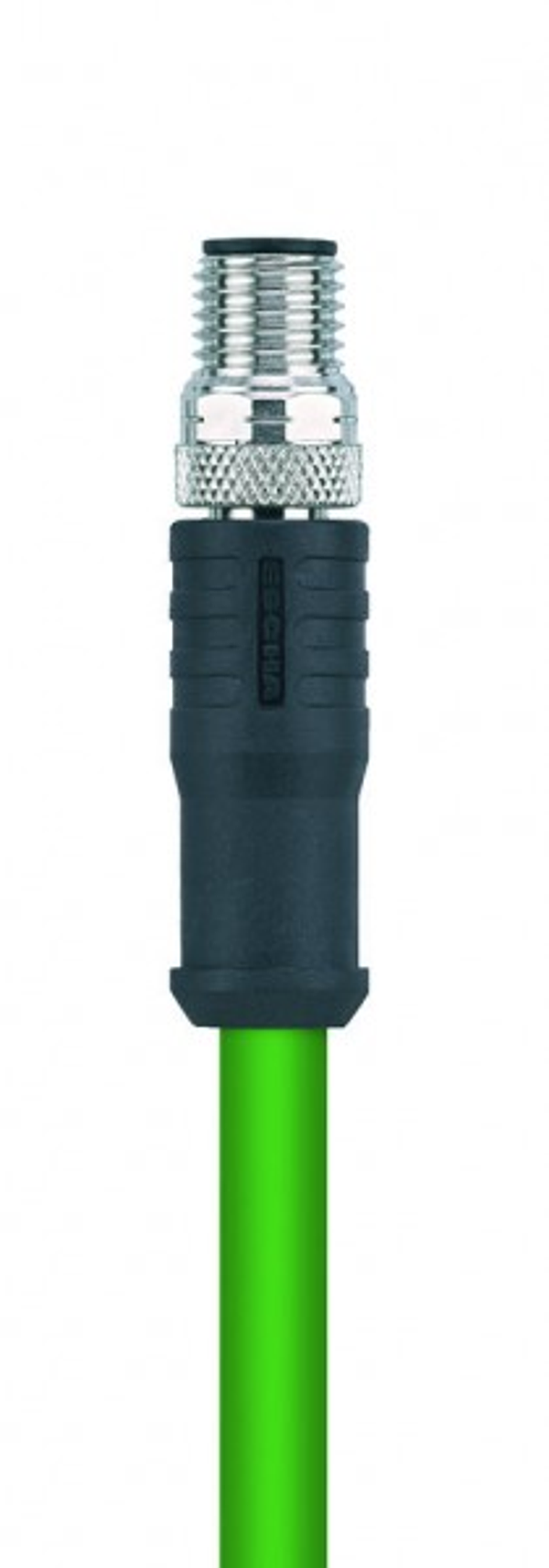

Escha 8055536
IE-SSPS4.027-1-IE-RJ45SS8.005/S3400
M8 male, straight, 4 poles, RJ45 male, 8 poles, Industrial Ethernet, shielded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Shielded PUR Ethernet-cable for industrial applications. Fits to real-time requirements according to IEC61158. The cable meets the UL-Style20963 (80°/30V)- and the Cat5 (electrical properties according to EN50288-2-2) requirements. Materials and a constructive setup for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable. Drag-chain/torsion operations are possible. High tensile strength through incorporated Kevlar-strands.
Downloads
Technical parameters
| Outer diameter of jacket: | 4,80 mm |
| Material: | PUR |
| Pin assignment: | 1 WHOG, 2 WHBU, 3 BU, 4 OG |
| Wire cross-section: | 1 x 4 x AWG26, star quad |
| Rated voltage: | 4 A |
| Wire colors: | WHBU/BU, WHOG/OG |
| Insulation resistance (Ω): | Cat5e |
| Transmission features: | -30°C...+90°C |
| Ambient temperature product: | Metal, CuZn, gold-plated |
| Transmission features: | Cat5 |
| Rated voltage cable: | 30 V UL rating |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, halogen free, oil resistant, high flexibility, microbes resistant |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Material of shielding housing: | IEC 61076-2-104 |
| Sealing (female) material: | IP65, IP67, IP68 |
| Standards: | >100 mating cycles |
| Degree of protection (mounted): | 3/2 |
| Mechanical life-cycle: | with shielding |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
