Product
Escha
8052711
AL-ZWKP3-2/P00
Request a Quote

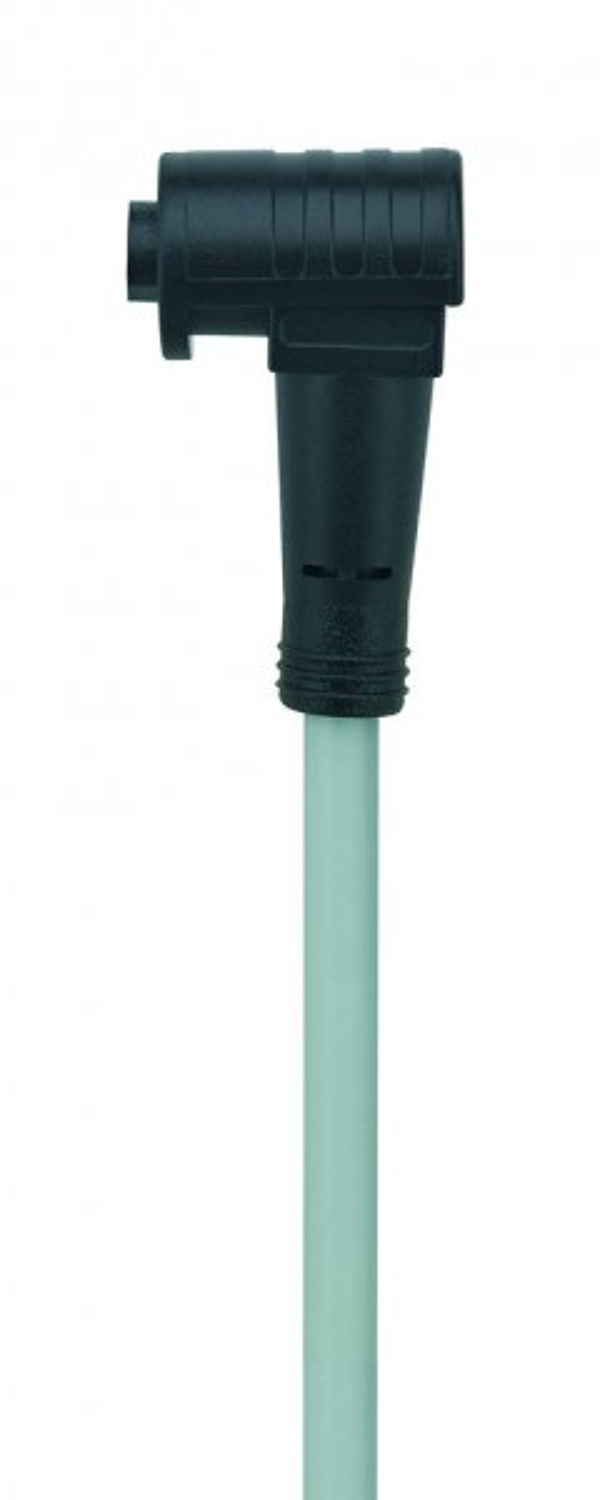

Image copyright: Escha
Escha 8052711
AL-ZWKP3-2/P00
Ø8mm snap female, angled, sensor-/actuator cable, 3 poles, with locking mechanism
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Downloads
Technical parameters
| Connector: | female, angled, Ø8mm snap, with locking mechanism |
| Number of pins: | 3 |
| Jacket color: | GY, similar RAL7040 |
| Wire cross-section: | 3 x 0.25 mm² |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 4 |
| Conductor structure: | 14 x 0.15 mm |
| Bending radius (fixed): | 5 x Ø-cable |
| Temperature range (fixed): | -25°C...+80°C |
| Temperature range (repeated): | 0°C...+80°C |
| Rated voltage cable: | ≤300 V |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
