Product
Escha
8051376
AL-WAKS3-10/P01
Request a Quote
Image copyright: Escha

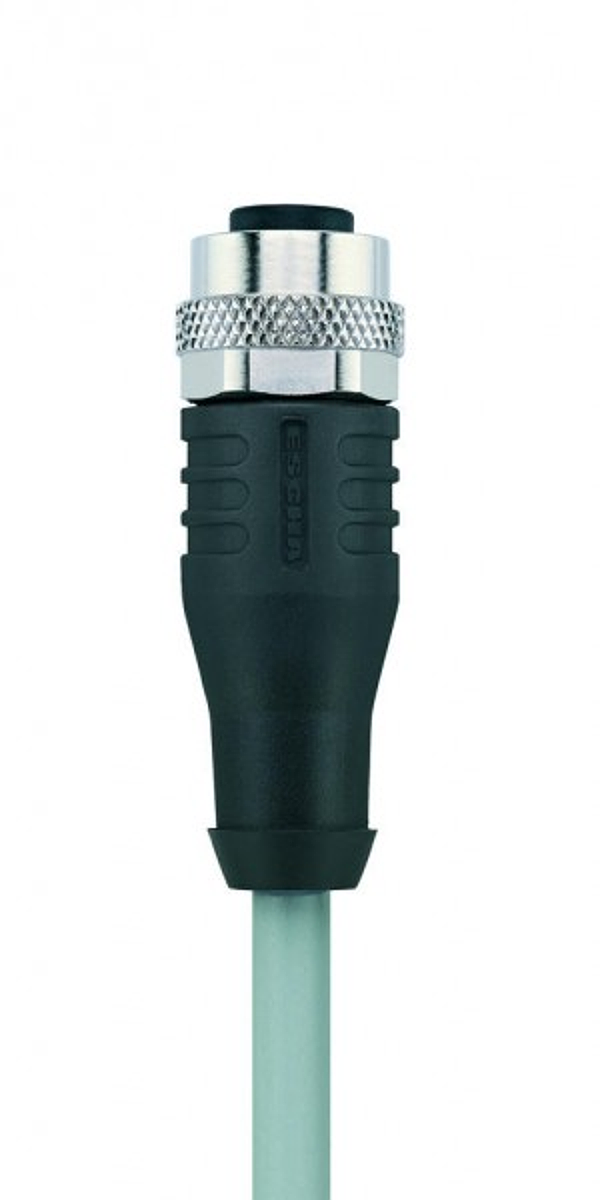

Escha 8051376
AL-WAKS3-10/P01
M12 female, straight, sensor-/actuator cable, 3 poles, A-coded, shielded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. P01-cables meet the UL and CSA (UL1729/2464; cULus) requirements. Very good EMC-features with shielded versions.
Downloads
Technical parameters
| Outer diameter of jacket: | 5,00 mm |
| Material: | PVC |
| Jacket color: | GY, similar RAL7040 |
| Wire cross-section: | 3 x 0.34 mm² |
| Rated voltage: | 250V |
| Wire colors: | BN, BU, BK |
| Conductor structure: | 19 x 0.15 mm |
| Insulation resistance (Ω): | >=10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Grip body material: | Plastic, TPU, BK |
| Shielding: | Yes |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
