Product
Escha
8050854
VCI21-230.0-10/P00
Request a Quote
Image copyright: Escha
Escha 8050854
VCI21-230.0-10/P00

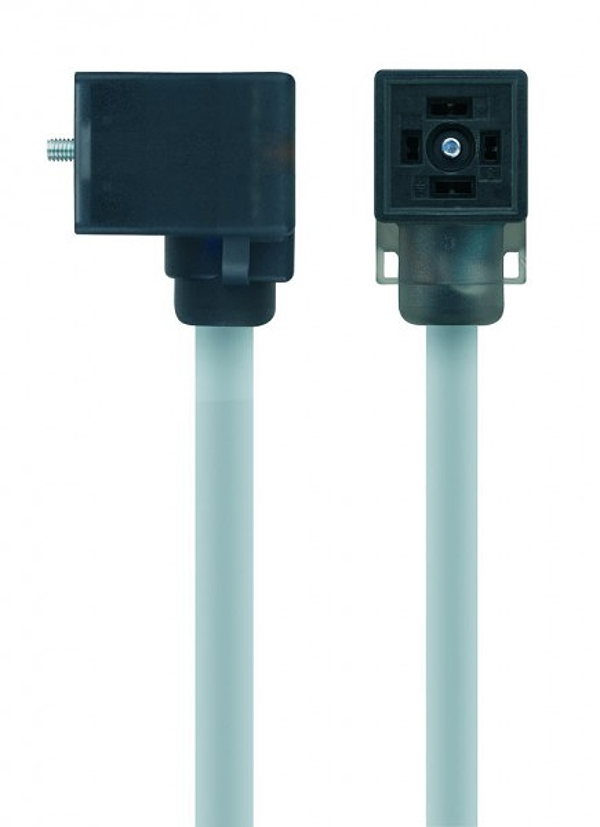

Valve-connector, housing style CI, 2+PE, sensor-/actuator cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Downloads
Technical parameters
| Housing style: | CI |
| Protection circuit: | without |
| Jacket color: | GY, similar RAL7040 |
| Number of pins: | 2+PE |
| Wire insulation material: | PVC |
| Rated voltage: | 230V AC/DC |
| Conductor structure: | 24 x 0,20 mm |
| Bending radius (fixed): | 5xØ-cable |
| Ambient temperature product: | -30°C...+90°C |
| Temperature range (repeated): | 0°C...+80°C |
| Rated voltage cable: | 240V |
| Contact-carrier material: | Plastic, PA, BK |
| Standards: | DIN EN 175301-803 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
