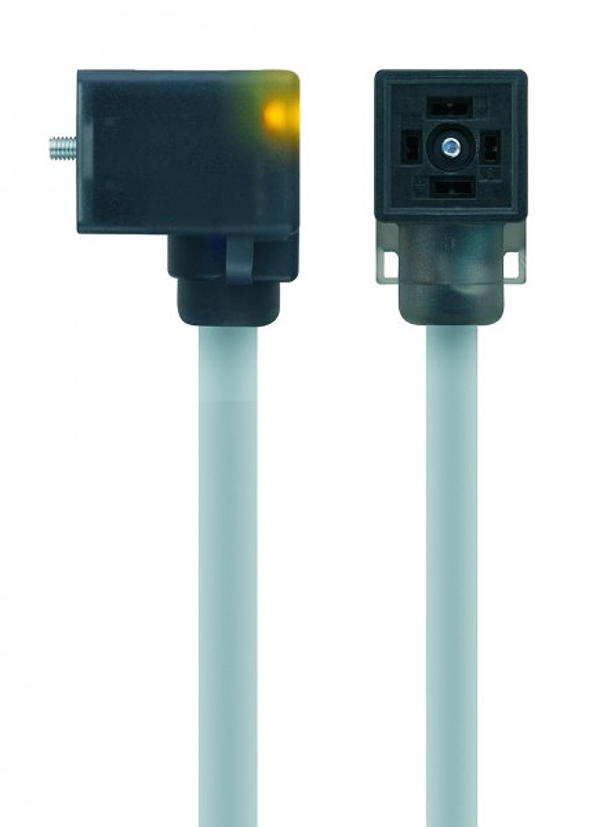

Escha 8047836
VCI22-24.1-5/P01
Valve-connector, housing style CI, 2+PE bridged, sensor-/actuator cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. P01-cables meet the UL and CSA (UL1729/2464; cULus) requirements.
Downloads
Technical parameters
| Housing style: | CI |
| Material: | PVC |
| Protection circuit: | without |
| Wire cross-section: | 3 x 0.75 mm² |
| Number of pins: | 2+PE, PE bridged |
| Wire colors: | BN, BU, GNYE |
| Rated voltage: | 30V AC/DC |
| Current load (at 40°C): | 10 |
| Temperature range (fixed): | -25°C...+80°C |
| Temperature range (repeated): | 0°C...+80°C |
| Rated voltage cable: | ≤300 V |
| Grip body material: | Plastic, TPU, BK, translucent |
| Contact-carrier material: | Plastic, PA, BK |
| Standards: | DIN EN 175301-803 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
