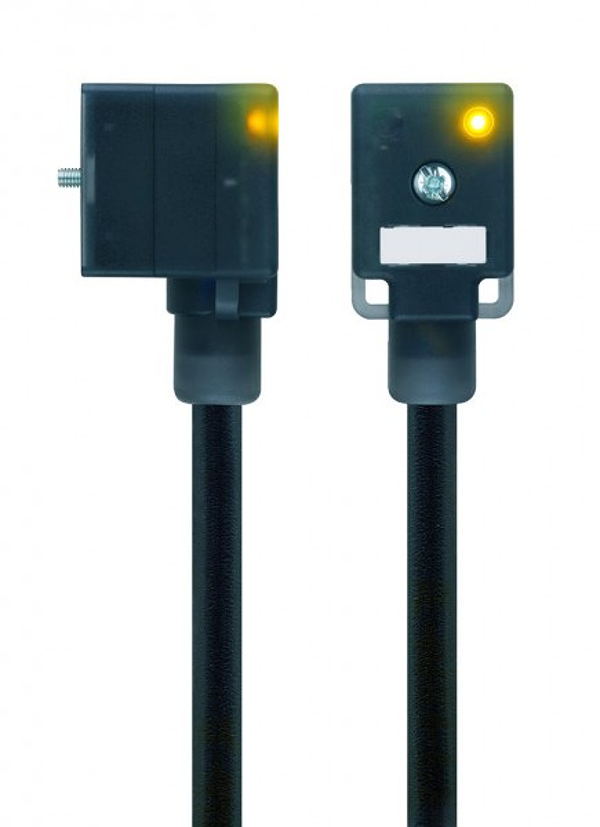

Image copyright: Escha
Escha 8047807
VB21-24.1-5/S370
Valve-connector, housing style B, 2+PE, sensor-/actuator cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Downloads
Technical parameters
| Housing style: | B |
| Material: | PUR |
| Protection circuit: | without |
| Connector: | female, angled, Valve B |
| Wire insulation material: | PP |
| Wire colors: | BN, BU, GNYE |
| Conductor structure: | 42 x 0,15 mm |
| Bending radius (fixed): | 5 x Ø-cable |
| Insulation resistance (Ω): | ≥10 8 |
| Temperature range (repeated): | -30°C...+90°C |
| Contact material: | Metal, CuSn, silver-plated |
| Rated voltage cable: | ≤300 V |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant |
| Standards: | DIN EN 175301-803 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.24 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
