Product
Escha
8046613
VA22-24.1-5/P01
Request a Quote

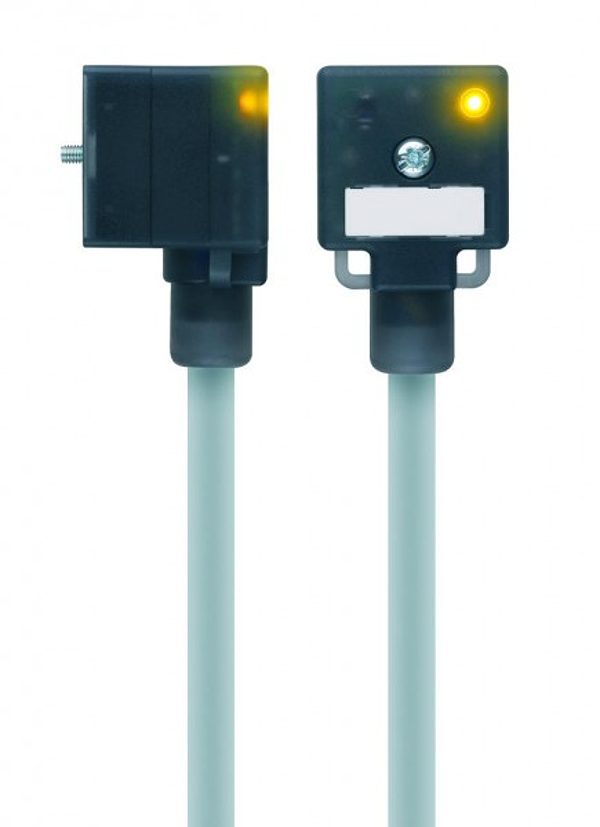

Image copyright: Escha
Escha 8046613
VA22-24.1-5/P01
Valve-connector, housing style A, 2+PE bridged, sensor-/actuator cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. P01-cables meet the UL and CSA (UL1729/2464; cULus) requirements.
Downloads
Technical parameters
| Outer diameter of jacket: | 6,10 +/- 0,2 mm |
| Signal status-indicator: | LED YE |
| Protection circuit: | without |
| Connector: | female, angled, Valve A |
| Number of pins: | 2+PE, PE bridged |
| Pin assignment: | 1 BN, 2 BU, PE: GNYE |
| Rated voltage: | 30V AC/DC |
| Bending radius (fixed): | 5 x Ø-cable |
| Insulation resistance (Ω): | ≥10 8 |
| Temperature range (repeated): | 0°C...+80°C |
| Contact material: | Metal, CuSn, silver-plated |
| Special features: | seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant |
| Contact-carrier material: | Plastic, PA, BK |
| Standards: | DIN EN 175301-803 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
