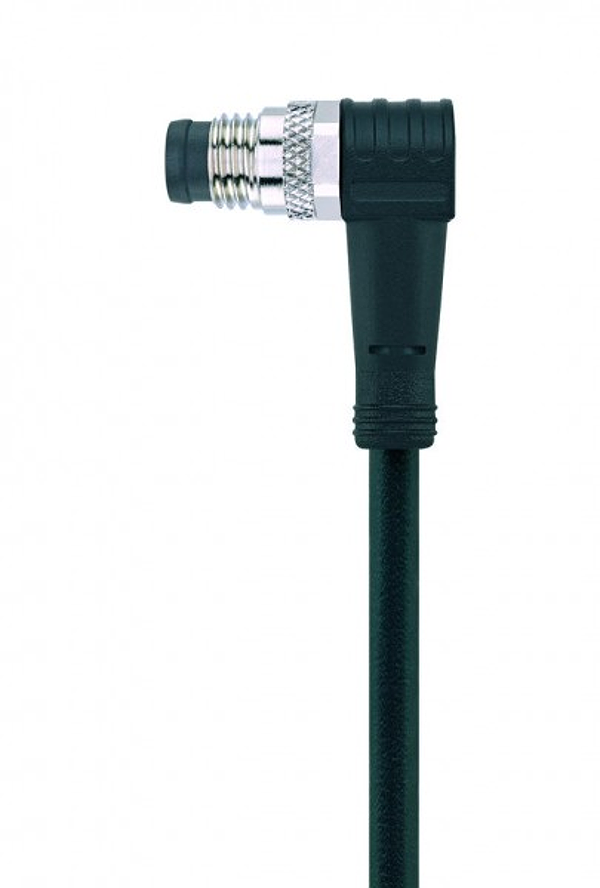

Escha 8043758
AL-SWSP3-5/S370
M8 male, angled, sensor-/actuator cable, 3 poles
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Downloads
Technical parameters
| Connector: | male, angled, M8 |
| Material: | PUR |
| Jacket color: | BK, similar RAL9005 |
| Rated voltage: | 60V |
| Wire insulation material: | PP |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Bending radius (fixed): | 5 x Ø-cable |
| Contact material: | Metal, CuSn, gold-plated |
| Temperature range (repeated): | -30°C...+90°C |
| Contact-carrier material: | Plastic, TPU, BK |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Rated voltage cable: | ≤300 V |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
