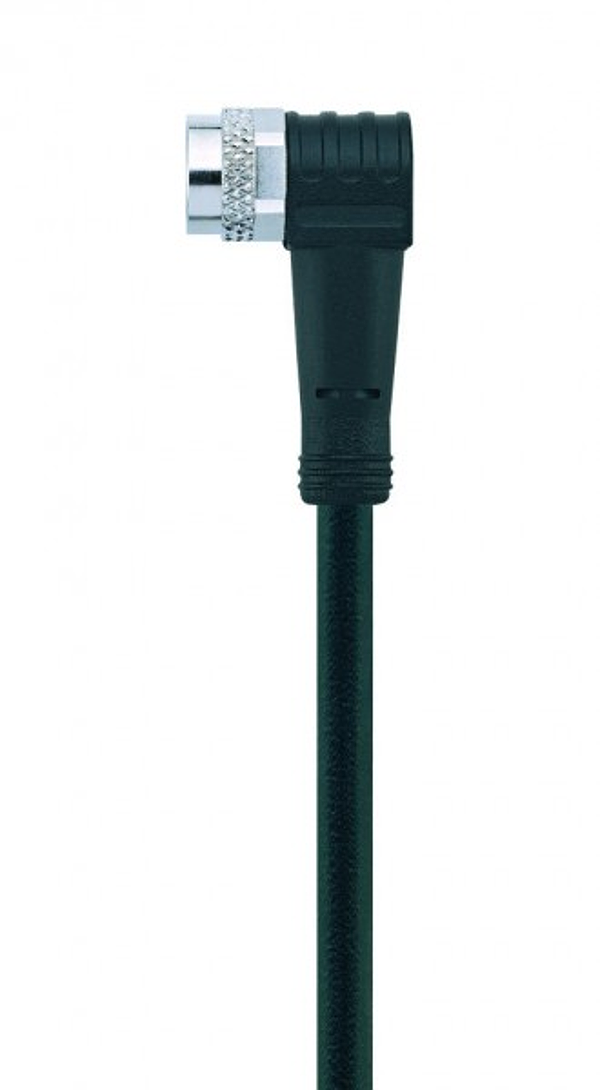

Escha 8043752
AL-SWKP3-5/S370
M8 female, angled, sensor-/actuator cable, 3 poles
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Downloads
Technical parameters
| Connector: | female, angled, M8 |
| Number of pins: | 3 |
| Pin assignment: | 1 BN, 3 BU, 4 BK |
| Wire cross-section: | 3 x 0.25 mm² |
| Wire insulation material: | PP |
| Wire colors: | BN, BU, BK |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Grip body material: | Plastic, TPU, BK |
| Halogen-free: | Yes |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Rated voltage cable: | ≤300 V |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Volksrepublik China |
| EAN: | |
| Weight: | 0.11 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
