Product
Escha
8043520
PB-WASSW4.5-AS
Request a Quote

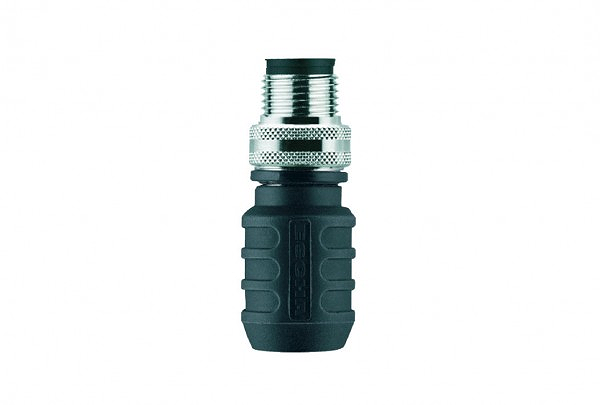

Image copyright: Escha
Escha 8043520
PB-WASSW4.5-AS
Termination connector, M12 male, straight, Profibus, 5 poles, B-coded, shielded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Connector: | male, straight, M12 |
| Number of pins: | 5 |
| Coding: | B |
| Rated voltage: | 60V |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Funktion: | PROFIBUS Termination connector (male) |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Grip body material: | Plastic, TPU, BK |
| Contact-carrier material: | Plastic, TPU, BK |
| Coupling nut material: | Metal, CuZn |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.02 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
