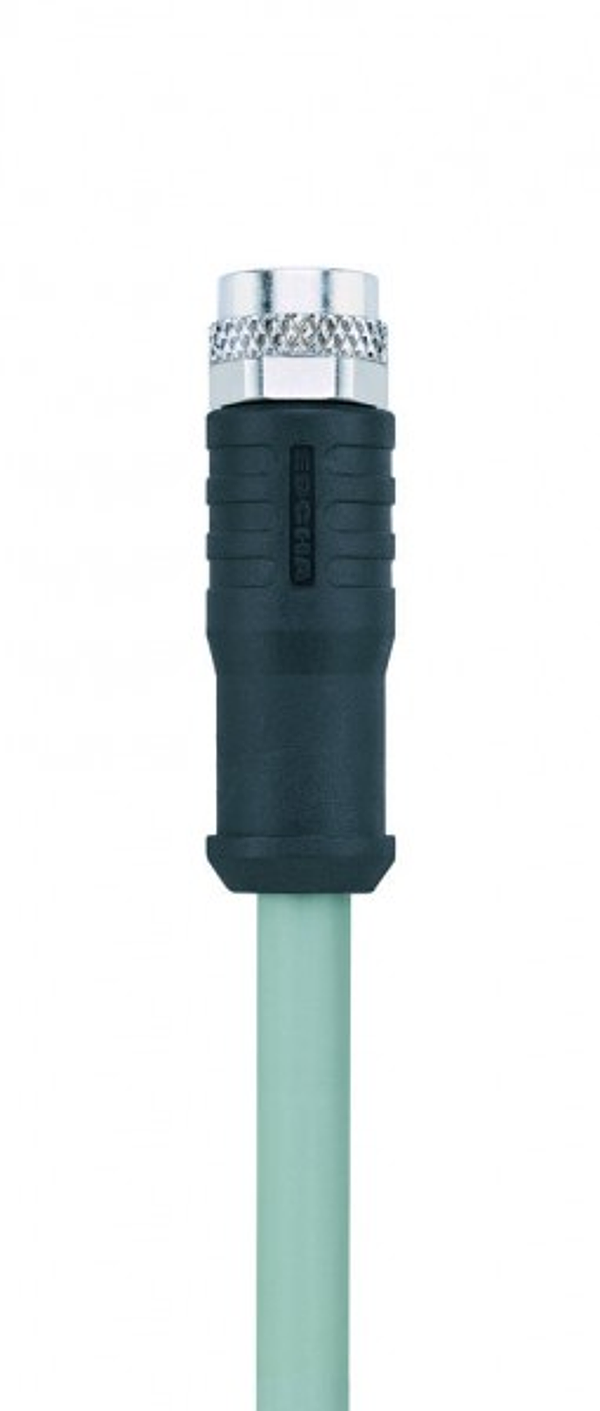

Escha 8042876
AL-SKPS4.5-1-AL-SWSPS4.5/P00
M8 female, straight, M8 male, angled, sensor-/actuator cable, 5 poles, shielded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. Very good EMC-features with shielded versions.
Downloads
Technical parameters
| Connector: | female, straight, M8 |
| Number of pins: | 5 |
| Pin assignment: | 1 BN, 2 WH, 3 BU, 4 BK, 5 GY |
| Wire cross-section: | 5 x 0.25 mm² |
| Current load (at 40°C): | 3 A |
| Wire colors: | BN, WH, BU, BK, GY |
| Conductor structure: | 14 x 0.15 mm |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Contact-carrier material: | Plastic, TPU, BK |
| Grip body material: | Plastic, TPU, BK |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Sealing (female) material: | IEC 61076-2-104 |
| Standards: | IP65, IP67, IP68 |
| Degree of protection (mounted): | >100 mating cycles |
| Mechanical life-cycle: | 3 |
| Degree of pollution: | with shielding |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
