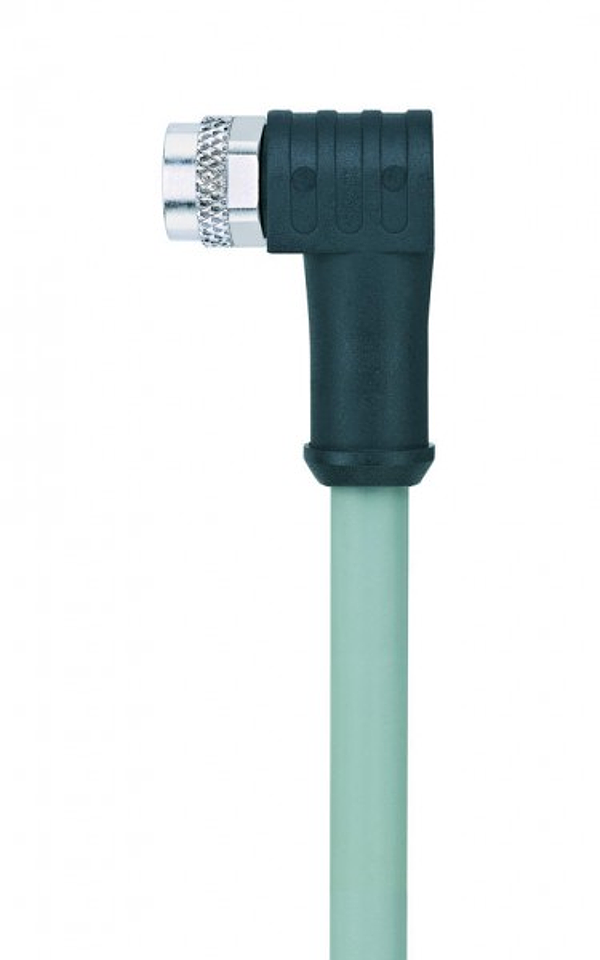

Escha 8042868
AL-SWKPS4.5-1-AL-SWSPS4.5/P00
M8 female, angled, M8 male, angled, sensor-/actuator cable, 5 poles, shielded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. Very good EMC-features with shielded versions.
Downloads
Technical parameters
| Outer diameter of jacket: | 5,30 mm |
| Material: | PVC |
| Jacket color: | GY, similar RAL7040 |
| Wire cross-section: | 5 x 0.25 mm² |
| Wire insulation material: | PVC |
| Insulation resistance (Ω): | ≥10 8 |
| Conductor structure: | 14 x 0.15 mm |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuSn, gold-plated |
| Temperature range (repeated): | 0°C...+80°C |
| Rated voltage cable: | ≤300 V |
| Shielding: | Yes |
| Sealing (female) material: | IEC 61076-2-104 |
| Standards: | IP65, IP67, IP68 |
| Degree of protection (mounted): | >100 mating cycles |
| Mechanical life-cycle: | 3 |
| Degree of pollution: | with shielding |
