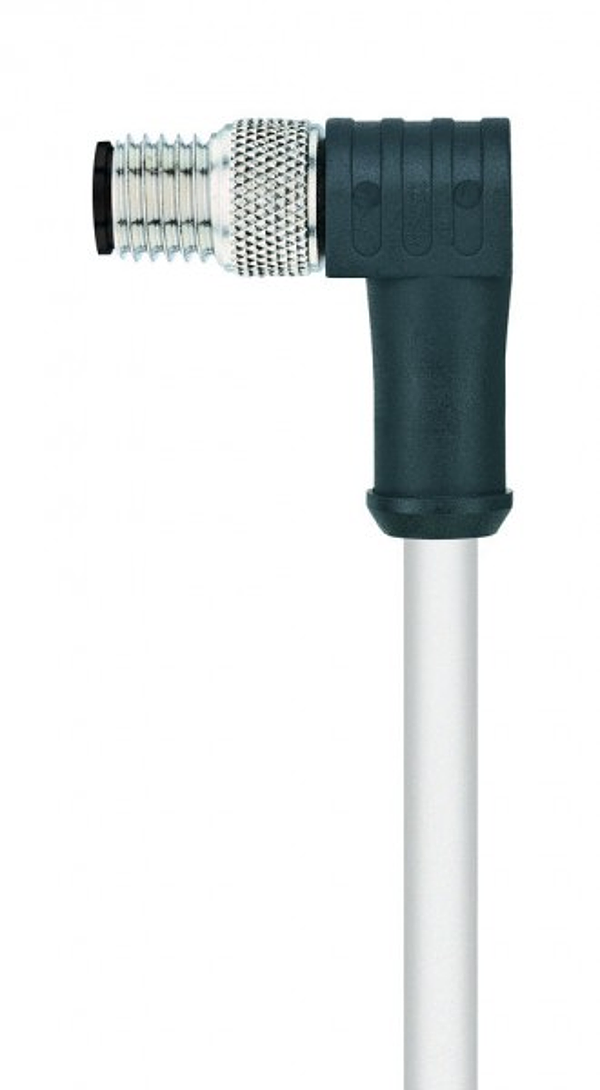

Escha 8036104
HT-SWSP4-5/S2430
M8 male, angled, sensor-/actuator cable, 4 poles, high-temperature
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The thermal resistance of this high-temperature cable extends from -190°C to +260°C. Due to its fully fluorinated jacket and wire insulation, the cable is perfectly suited for applications in high-frequency cables, as control cable in critical temperature areas, and in the computer-, and aviation industry. In addition, it stands out through a very good chemical strength, as well as its ozone- and weather resistance.
Downloads
Technical parameters
| Connector: | male, angled, M8 |
| Number of pins: | 4 |
| Jacket color: | WH, similar RAL9003 |
| Rated voltage: | 60V |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -20°C...+150°C |
| Contact material: | Metal, CuZn, gold-plated |
| Temperature range (fixed): | -190°C...+260°C |
| Contact-carrier material: | Plastic, PBT GF, BK |
| Special features: | seawater resistant, LABS free, RoHs compliant, ozone resistant, UV resistant, hydrolysis proof, flexibility at low temperature, non-flammable, low emission of smoke, excellent chemicals resistance, flexible at high temperatures |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | 50mm stripped |
| Degree of pollution: | 3/2 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
