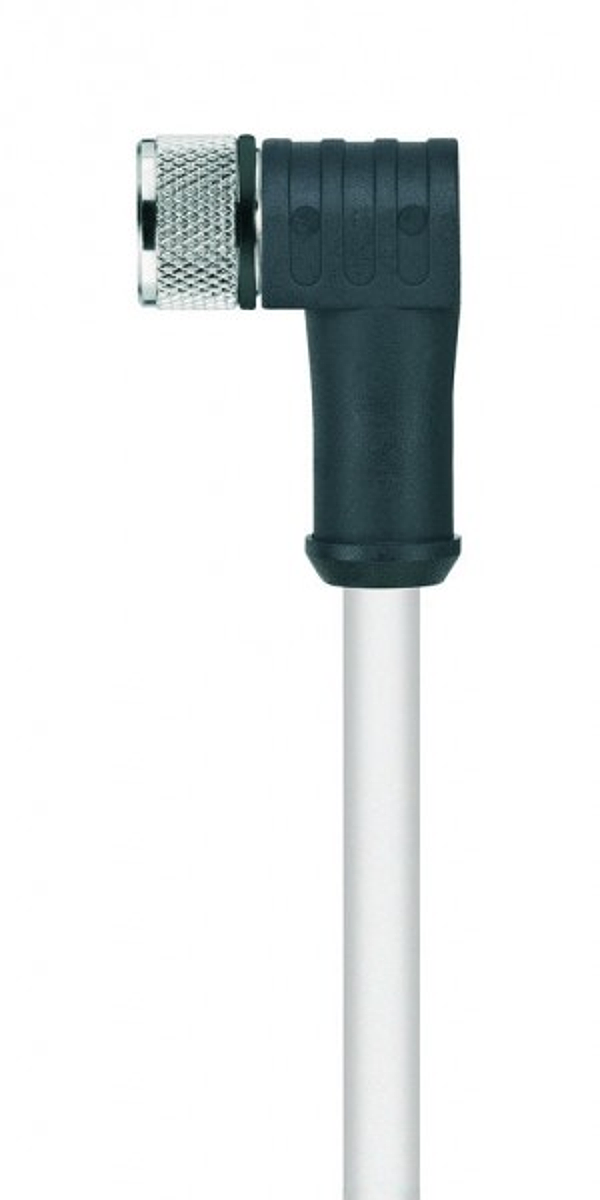

Escha 8036099
HT-SWKP3-5/S2430
M8 female, angled, sensor-/actuator cable, 3 poles, high-temperature
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The thermal resistance of this high-temperature cable extends from -190°C to +260°C. Due to its fully fluorinated jacket and wire insulation, the cable is perfectly suited for applications in high-frequency cables, as control cable in critical temperature areas, and in the computer-, and aviation industry. In addition, it stands out through a very good chemical strength, as well as its ozone- and weather resistance.
Downloads
Technical parameters
| Outer diameter of jacket: | 3,80 mm |
| Material: | PTFE |
| Pin assignment: | 1 BN, 3 BU, 4 BK |
| Wire cross-section: | 5 x AWG22 |
| Current load (at 40°C): | 4 |
| Wire colors: | BN, WH, BU, BK, GY |
| Conductor structure: | 7 x 0.254 mm |
| Bending radius (fixed): | 5 x Ø-cable |
| Grip body material: | Plastic, PBT GF, BK |
| Rated voltage cable: | ≤250 V |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | 50mm stripped |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.17 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
