Product
Escha
8031561
IE-WASSY4.029-5-IE-WASSY4.029/S2171
Request a Quote
Image copyright: Escha
Escha 8031561
IE-WASSY4.029-5-IE-WASSY4.029/S2171
M12 male, straight, M12 male, straight, Industrial Ethernet, 100 MBit/s, 4 poles, D-coded, shielded
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Shielded, PUR-cable for industrial applications. The cable is CMX-verified or meets the Cat5e (electrical properties of EN 50288-2-1) requirements. Materials and a constructive setup allow for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable. A drag-chain application with up to 3 million bending cycles is possible.
Downloads
Technical parameters
| Outer diameter of jacket: | 6,50 mm |
| Number of pins: | 4 |

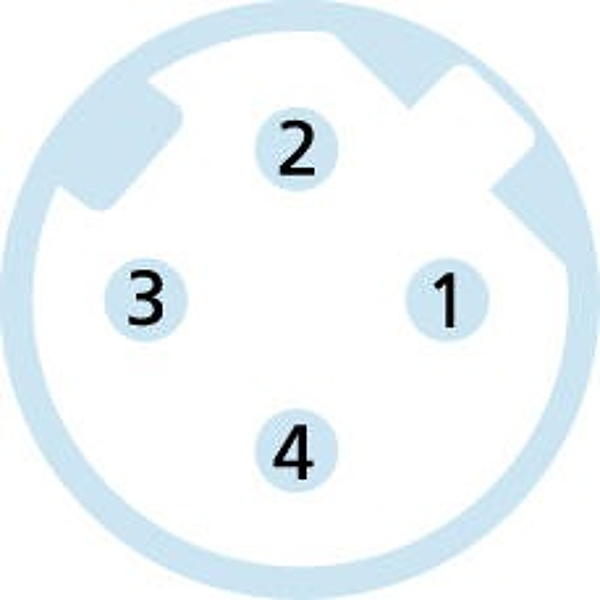

| Pin assignment: | 1 YE, 2 WH, 3 OG, 4 BU |
| Wire cross-section: | 1 x 4 x AWG22, star quad |
| Wire insulation material: | FRNC |
| Wire colors: | YE/OG ; WH/BU |
| Insulation resistance (Ω): | ≥10 8 |
| Resistance (mΩ) (mΩ): | 5 |
| Temperature range (fixed): | -40°C...+75°C |
| Temperature range (repeated): | -30°C...+70°C |
| Halogen-free: | Yes |
| Contact-carrier material: | Plastic, TPU, BK |
| Rated voltage cable: | 600V UL rating |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Sealing (female) material: | IEC 61076-2-109 |
| Standards: | IP65, IP67, IP68 |
| Degree of protection (mounted): | >100 mating cycles |
| Mechanical life-cycle: | 2 |
| Degree of pollution: | with shielding |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.34 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
